hot sale best price iSUZU Brand 4*2 190hp diesel Euro 4 street sweeper cleaning truck, best price isuzu road sweeping and washing truck for sale
ISUZU street sweeper washer vehicle is a kind of special purpose vehicle for sweeping, high pressure washing, etc. ISUZU street sweeper washer truck is with the advantages of sweeper truck and high pressure cleaning truck, realizing the cleaning requirements for different ground surfaces.
ISUZU street sweeper washer vehicle adopts ISUZU QL11009LARY the second type chassis, ISUZU Euro 4 diesel engine, JMC auliary engine, imported high quality high pressure water pump, high pressure nozzles, etc.
If you're interested in our road sweeper truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.

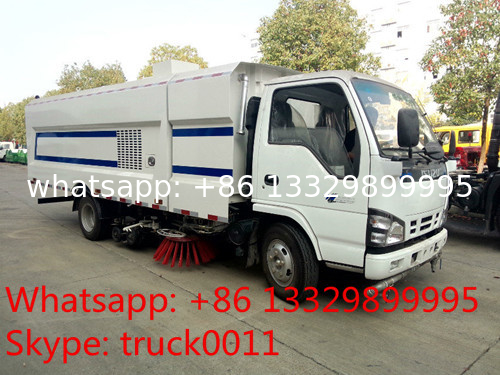

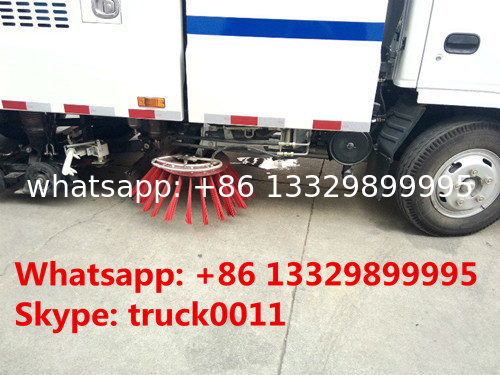

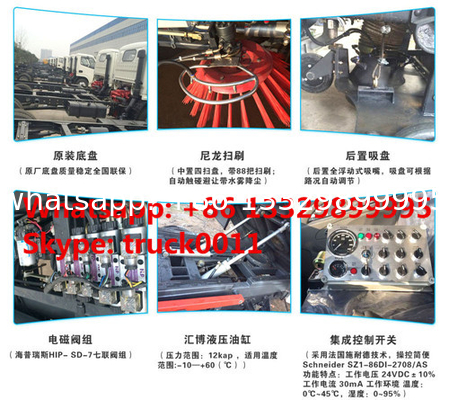

More pictures of hot sale ISUZU road sweeper and flushing truck manufactured by Chengli SPecial Automobile Co., Ltd. as below.
best price road sweeper and cleaning truck for sale
high quality and best price ISUZU street sweeping and flushing truck for sale
More information, please feel free to contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
More technical parameters of hot sale ISUZU road sweeper truck as below
| |
| Truck model |
ISUZU |
Remark |
| The second type chassis |
QL11009LARY(Euro Ⅳ) |
|
| wheelbase |
4175mm |
|
| front/rear suspension |
1100/1715 mm |
|
| Engine model |
Chassis engine |
4HK1-TCG40 |
|
| Auxiliary engine |
JX493ZG-268 |
|
| Engine power |
Chassis engine |
139kW/2600r/min |
|
| Auxiliary engine |
62kW/3600r/min |
|
| Max climbing grade |
30% |
|
| Mini turning diameter |
≤16m |
|
| Emission standard |
Euro 4 |
|
| Max speed |
110 km/h |
|
| Approach angle |
21° |
|
| Departure angle |
14° |
|
| Braking distance |
≤10m |
|
| Mass |
Curb mass |
7030kg |
|
| Max total mass |
10055kg |
|
| Dimension |
Overall dimension(L*W*H) |
7000×2200×2640mm |
|
| Mini ground clearance |
150mm |
|
| High pressure cleaning |
Cleaning speed |
|
3~20Km/h |
|
| Cleaning width |
3.4m |
|
| Water pressure |
10MPa |
|
| Water pump flow |
80L/min |
|
| Sucking and sweeping ability |
Sweeping ability |
≥90% |
|
| Max Suction particle size |
110mm |
|
| Sucking sweeping width |
3.2m |
|
| Max sweeping ability |
64000 ㎡/h |
|
| Disk extension dimension |
≥400mm |
|
| |
Driving speed when sucking and sweeping |
3-20km/h |
|
| Tank |
Water tank volume |
6.2m³ |
|
| Wastes van |
Wastes van volume |
≥3.5 m³ |
|
| Door Opening angle when discharging |
49° |
|
| Hydraulic system |
Type |
Open type, electronic control |
|
| Main units |
Gear pump, motor, hydraulic cylinder, solenoidvalve |
|
| System pressure |
16MPa |
|
| Hydraulic oil tank volume |
40L |
|
| Oil temperature |
60 ˚C |
|
| Electronic system |
Type |
DC24V,PLCProgramming control system |
|
| voltage |
Chassis :24V
Working device:12V |
|
| storage battery |
Chassis :12V-70A.H
Working device:12V-80A.H |
|
| High pressure water system |
Type |
ram-type pump |
|
| Model |
Italian KEB36R |
|
| System pressure |
10MPa |
|
| rotation rate |
1150r/min |
|
| Water valve type |
Hydraulic controlled high pressure ball valve |
|
| Water valve pressure |
7MPa |
|
| Nozzle type |
High pressure washing type |
|
| Water filter |
Filter type |
|
| Water sprinkling system |
Main units |
electric diaphragm pump, water filter, nozzles, etc. |
|
| Sweeping disks devices |
Type |
Two sweepers at the front driven by the hydraulic motor; controlled independently, automatically dodging function |
|
| Sweeper disk diameter |
850mm |
|
| Sweeper disk speed |
High speed:110; middle:80;low:50 |
|
| Sweeper disk angle |
Pitch angle:4-6degree; extroversion angle:4-7 degree |
|
| Sucking disk |
Type |
Length: 2146mm,double sucking mouths,hydraulic control, spring suspension |
|
| Sucking month diameter |
180mm |
|
| Side spraying pole |
V type spraying pole with dodging automatically function |
|
| |
|
|
|
|
|
