Place of Origin: | China |
Brand Name: | CLW |
Certification: | CCC, ISO 9001 |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | negotiable |
Packaging Details: | in bulk package, waxed |
Delivery Time: | 20days |
Payment Terms: | T/T, L/C |
Supply Ability: | 20units/month |
Color: | Different Color Upon Request | Price: | High Quality Factory Direct Sale Price |
---|---|---|---|
Material: | High Quality Special Material Q345R For Lpg Gas Pressure Vessels |
2021s customized 8m3 4tons mobile skid lpg tank for sale,cheapest price skid lpg tank plant with single digital scale for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. Our CLW lpg gas pressure vessels(lpg gas storage tank, lpg gas trailer, lpg gas truck, lpg gas dispensing truck, skid lpg gas filling plant) have been exported to so many countries all over the world. And to meet the needs of the international market, Chengli Special Automoile Co., Ltd. lpg gas pressure vessel factory design and manufacture lpg gas dispensing truck and skid lpg gas filling plant. And last year, we design and produce the first skid lpg gas filling plant for Nigerian client with 40,000L. The client was satisified with the skid lpg gas tank for refilling gas cylinders. This year, we have received so many orders of mobile skid lpg gas filling plants.
If you're interested in our skid lpg gas station, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.
main technical parameters of hot sale 8,000Liters 4Metric tons skid lpg gas tank as below
3.2tons LPG SKID STATION DIMENSIONS | |||
Volume of Tank | 8,000L | ||
Filling Weight | 4000kgs | ||
Tank Weight | 2540 kgs | ||
Thickness of Shell (mm) | 10 mm | ||
Thickness of Endplate (mm) | 10 mm | ||
Tank Diameter (mm) | 1600 mm | ||
External Dimensions (mm) (length x width x height) | 5070x 1650 x 2910 mm | ||
Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||
Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
Design Pressure | 1.77 MPa | ||
Corrosion Allowance | 1 mm | ||
Medium Density | 420 kg/ cbm | ||
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
Main parts of LPG Tank | |||
Item | Specification | Quantity | |
Discharge Pipe | DN50 | 1 | |
Inflow Pipe | DN50 | 1 | |
Outlet | DN50 | 1 | |
Gas phase balance pipes | DN50 | 2 | |
Manhole | DN450 | 1 | |
Drain Hole | DN50 | 1 | |
Electronic LPG Filling Machine |
Can fill 0.5kg to 150kg gas cylinder with receipt printing |
1 | |
Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. Skid Parts List will be show in separated page below. |
The spare parts for the LPG Skid-station
Model Number | Quantity | |
Tank | 10CBM | |
Cut-off Valve | DN50 | 6 Pieces |
Cut-off Valve | DN25 | 2 Pieces |
Cut-off Valve | DN50 | 1 Pieces |
Needle Valve | J24W, M20×1.5 | 1 Pieces |
Safety Valve | DN50 | 1 Pieces |
Magnetic reversible level gauge | UZFAL-2.5RF2640-0.50 | 1 Pieces |
Pressure gauge | M20×1.5 1.5Level 0~4MPA | 1 Pieces |
Thermometer | M33×2 2.5Level | 1 Pieces |
Accessory | Quantity |
Cut-off Valve | 9Pieces |
Shock-absorbing Tube | 1 Set |
Filling pump machine | 2 Pieces |
Discharge Pipe | 5 Miters/set, 2sets |
Anti static electric motor | 1 Piece |
Bottom Base | 1 Unit |

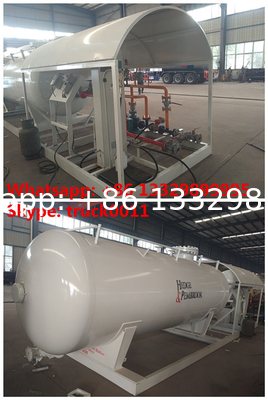

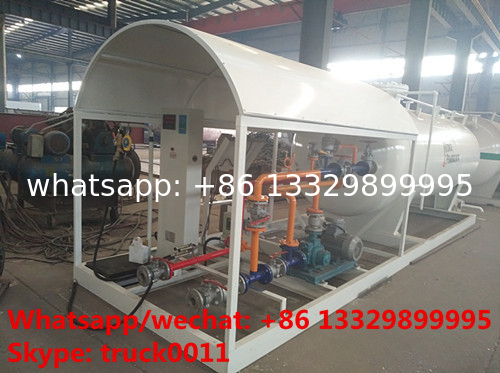

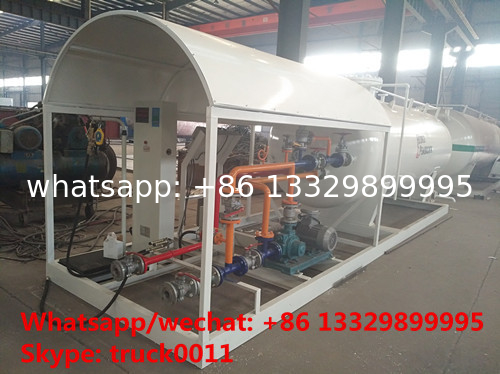

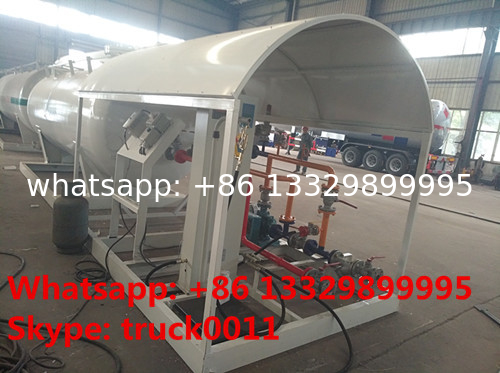

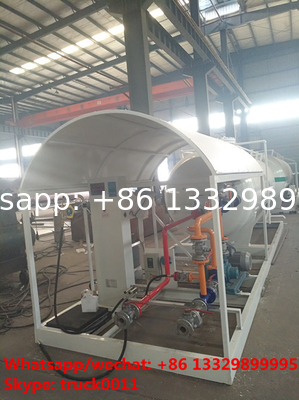

More pictures of hot sale CLW brand mobile skid lpg gas plant manufactured by Chengli Special Automobile Co., Ltd. as below.
