Factory sale dongfeng 140 long nose 6m3 hook lift garbage truck, wholesale lower price dongfeng hook wastes container lifting truck
hook garbage container lift truck is also called swing arm garbage truck, is mainly used in transporting kinds of garbage in residential areas, streets, and the factory,etc. Usually one skip loader refuse truck can be equipped with many skip loader refuse bin or bucket.
Product Notes:
1. Chassis manufacturer is Dongfeng Motor Co., Ltd
2. Engine model and Engine brand is YC4E140 Guangxi Yuchai
3. Factory direct sale
Garbage truck with slip on unit, also called hook arm type garbage truck, arm type garbage truck. The truck is widely used in city streets and school garbage collecting. One truck can be equipped with multiple garbage bucket, with the function of dump, hydraulic operation, convenient dumping.
The characteristics of the truck is that the bucket separate from the truck body, can achieve a freight truck with multiple joint operation, circulation transportation, fully improve the transportation capacity of truck, especially suitable for short-distance transport, such as the sanitation department of urban garbage cleaning and transportation, etc.
If you're interested in our hook lift garbage truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/MOb.: +86 13329899995.
Main Parameter of hook garbage container lift truck:
| Product Name |
hook garbage container lift truck |
| Cab |
Single row cab, two doors, rated passengers 2 or 3 |
|
Chassis
|
Brand |
Dongfeng |
| Chassis model |
EQ1102FLJ |
| Tire |
9.00-20 with 1 spare tire |
| Tire No. |
6+1(spare) |
| Braking System |
air brake |
| Transmission |
Manual , 5 forward and 1 reverse |
| Engine |
Model |
YC4E140 |
| fuel type |
diesel |
| Horse Power(kw/hp) |
140kw/190hp |
| Displacement(ml) |
5900ml |
| Emission standard |
Euro 2/3 |
|
Dimension & weight
|
Overall dimension (L*W*H/mm) |
7430x2470x2950mm |
| Axles No. |
2 |
| Curb Weight(kg) |
7255 |
| Max speed(km/h) |
90 |
| performance parameter |
Garbage bucket volume(m3) |
ground bucket or underground bucket 6m3 |
| Compartment material |
side and back 3mm ,floor 4mm carbon steel |
| Standard Configuration |
With one garbage bucket, with rear outrigger |
| Dump angle(°) |
≥45° |
| Dump type |
Hydraulic cylinder lifting self-loading |
| Performance data |
swing arm mix. pivot angle: 145 °, swing arm turn radius: around 6m |
| Hydraulic system pressure(Mpa) |
≤16Mpa |
| Control method |
manual hydraulic control on the body side |

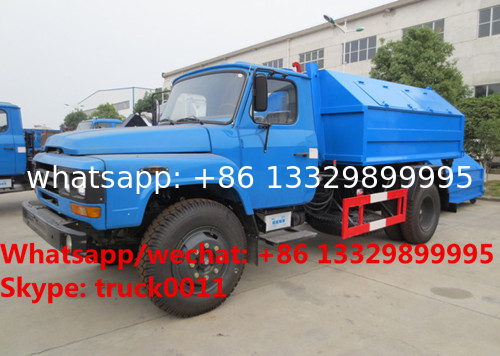

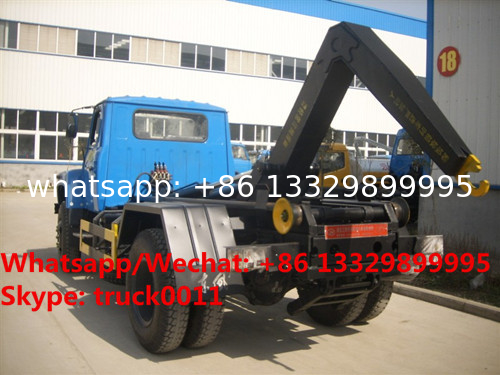

More pictures of hot sale dongfeng 140 long nose hook lift garbage truck as below
high quality and comeptitive price dongfeng long nose hook lift garbage truck for sale
HOT SALE! dongfeng 140 long nose wastes collecting vehicle
