Construction trash transported truck is also called building waster transported truck, dump truck, tipper truck, sand and stone transporting vehicle, etc. This kind of special purpose vehicle is mainly used for transporting loose material (such as sand, gravel, or dirt) for construction,construction building residue, etc. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front, allowing the material in the bed to be deposited dumped on the ground behind the truck at the site of delivery.
ISUZU 4*2 LHD mini dump truck is also called tipper truck, is mainly used for engineering projects, for transport dust, sand, rock ,etc, also used in mining and coal site.
Product Notes of ISUZU brand 4*2 LHD dump tipper truck manufactured by Chengli Special Automobile Co., Ltd. as below.
1. You can choose different brand chassis:Dongfeng,FAW,auman,styer,hongyan,howo,shacman,etc.
2. You can choose suitable loading capacity:from 1 ton to 40 ton
3. You can choose suitable driving type:4x2,4x4,6x4,6x6,8x2,8x4,semi-trailer
4. You can choose different dump way: rear dump, side dump
5. Competitive price and good quality
6. Factory direct sale, professional experience.
If you're interested in our dump tipper truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.

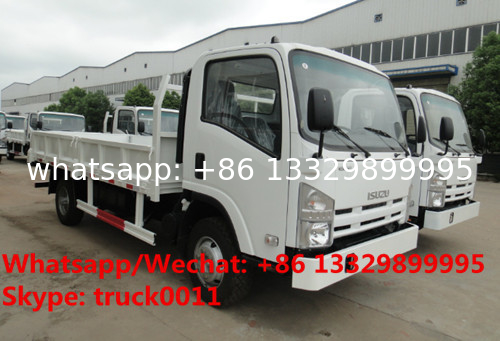

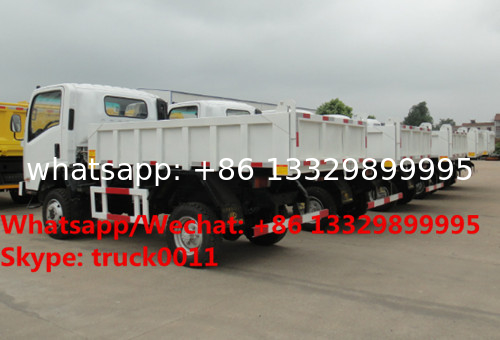

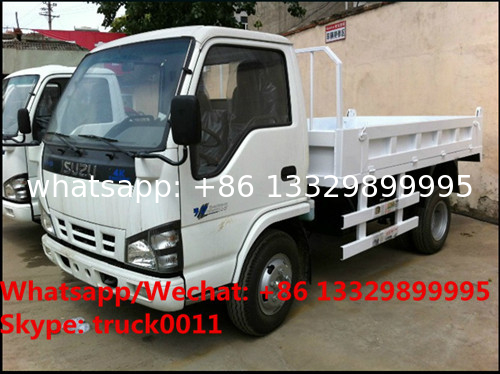

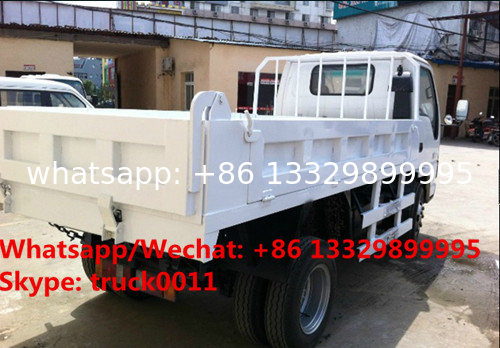

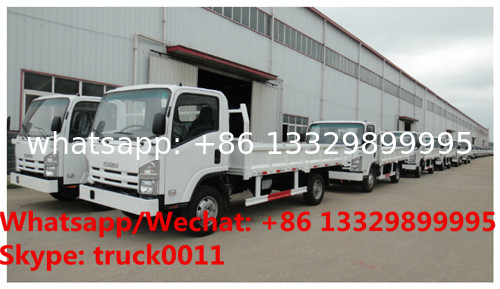

More pictures of hot sale isuzu 600P dump tipper truck manufactured by Chengli Special Automobile Co., Ltd. as below.
HOT SALE! ISUZU brand dump tipper truck for sale
High quality and competitive price ISUZU tipper truck for sale
Factory customized ISUZUdump tipper truck for sale
main technical parameters of ISUZU 600P 4*2 LHD dump tipper truck manufactured by Chengli Special Automobile Co., Ltd. as below.
| Items |
Descriptions |
Specifications and Types |
| General |
Truck Name |
Isuzu 600P light duty dump tipper truck for sale |
| Drive Type |
4*2 LHD |
| Total mass(kg) |
4495 |
| Curb Weight (kg) |
2715 |
| Rated mass(kg) |
1650 |
| Overall Dimensions L*W*H(mm) |
5650×2000×2380 |
| Engine |
Engine Model |
4KH1-TCG40 |
| Engine Brand |
Isuzu |
| Fuel Type |
Diesel |
| Power |
88kw/120HP |
| Emission Standard |
Euro Ⅳ |
| Displacement(ml) |
2999 |
| Chassis |
Chassis Brand |
ISUZU |
| Front/Rear Axle Load(KG) |
2250/4185 |
| Tire No. |
6 |
| Tire Specification |
7.00-16 14PR |
| Wheelbase (mm) |
3360 |
| Axle No. |
2 |
| Gear Box |
ISUZU MSB 5 speed gearbox, manual |
| Brake |
Oil cut brake |
| Steering Wheel |
Left Hand Drive with power-assisted, |
| Axle(kg) |
2.5ton front axle/4.8ton rear axle |
| Driver cab |
ISUZU 600P single row driver cab with original air conditioner |
| Tipping system |
Box inner dimension(mm) |
3760×1880×600 |
| Box material |
High quality Carbon steel, 3mm thickness for side sheet and 4mm thickness for bottom sheet. |
| Tipping way |
Double hydraulic cylinders middle installed tipping |
| Open type |
Rear door open |
