Customized dongfeng 4*2 LHD 4cbm intelliegent type asphalt distributing vehicle for sale, bitumen tanker spreading truck for sale
Customized intelligent type asphalt tanker vehicle adopts dongfeng 4*2 LHD single row driver cab, yuchai 120hp diesel engine, 5 speed gearbox, 7.00R16 tires*6, 3300mm wheelbase, etc.
The devices of intelligent type dongfeng brand 4cbm 3tons asphalt distributing vehicle manufactured by Chengli Special Automobile Co., Ltd. as below.
1, the asphalt pump adopts high quality QGB680 (high viscosity asphalt pump, 680L/min).
2, hydraulic system: the model of hydraulic motor for asphalt pump: 05-110-BD31; hydraulic pump model: CBQ550-L;Proportional valve (Taiwan EFBG-03-160-HF); Automatic reversing valve and overflow valve, radiator adopts Risheng brand.
3, control way: Intelligent touch screen computer control in the cab; control system: (Siemens, Germany), 30 intelligent asphalt spraying nozzles (one controls one).
4, Heating method: Burner (Italy imported Riello brand burner model G10)+ Automatic heating of heat transfer oil
5, gasoline generator unit: 6KW
6, asphalt distributing width: 4m; spreading amount: 0.25-2.5L/㎡
7, Distributing medium: emulsified asphalt, hot asphalt, SBS hot asphalt
Asphalt spray truck is also called bitumen spray truck, it can distribute liquid asphalt, emulsified asphalt,hot asphalt,rubber asphalt, etc. Our main equipment adopt Chinese or Imported equipment, the quality is reliable and stable. Every kind of truck have different configuration to meet different requirement from different country. We can manufacture kinds of asphalt spray truck and manufacture synchronous chip sealer , you can count on us.
Advanture of CLW brand asphalt spray truck as below.
1 Main parts such as Hydraulic pump ,asphalt pump etc all adopted European famous brand
2 Asphalt pump adopted thermal conductive oil insulation ,conservation of energy
3 Easy to control
4 It is widely use for transportation and distribution of hot asphalt,modified asphalt
5 Two ways of cleaning asphalt pump and pipeline :diesel cleaning and high pressure air cleaning , it makes spraying nozzles and pipeline clean all the time.
If you're interested in our asphalt tanker truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.

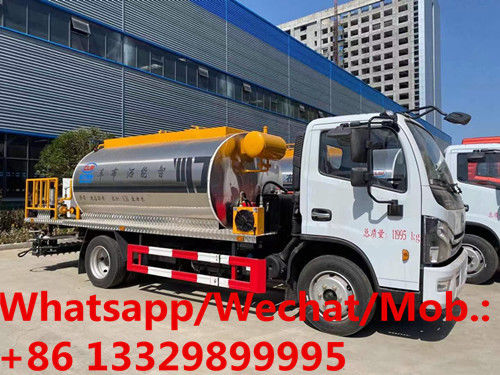

More pictures of Dongfeng 3tons bitumen tanker spreading vehicle as below.
Main technical parameters of dongfeng 4cbm bitumen tanker truck manufactured by Chengli Special Automobile Co., Ltd. as below
| Main technical parameters |
| Product name |
asphalt tanker truck for sale |
| Total mass(Kg) |
7300 |
Tanker volume(m3) |
4 |
| Rated mass(Kg) |
2690,2625 |
Overall dimension(L*W*H)(mm) |
6300×2080×2400 |
| Curb mass(Kg) |
4480 |
Driver cab seated person |
2 |
| Approach/departure angle(°) |
19/12 |
Front/rear suspension(mm) |
1032/1968 |
| Axle nos. |
2 |
wheelbase(mm) |
3300 |
| Axle load(Kg) |
2920/4380 |
Max speed(Km/h) |
95 |
| Chassis main parameters |
| Truck chassis |
EQ1070 |
manufacturer |
dongfeng |
| Appracoh/departure angle(°) |
19/16 |
Tire specification |
7.00R16 14PR*6 |
| Steel spring |
8/9+5, |
Front tread(mm) |
1506 |
| Fuel type |
Diesel |
Rear tread(mm) |
1466 |
| Emission standard |
Euro Ⅲ |
| Engine model |
Manufacturer |
displacement(ml) |
Power(Kw) |
| YC4FA120-33 |
YUCHAI |
2982 |
88 |
