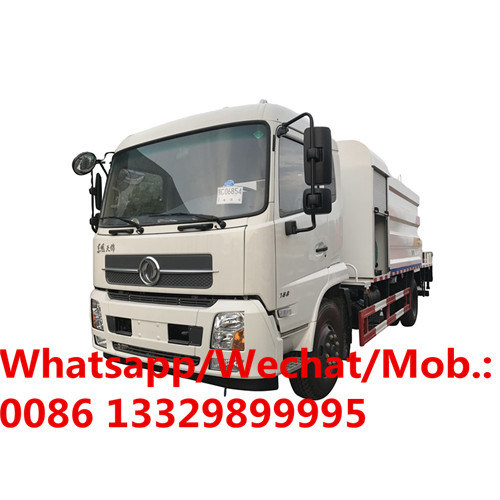

dongfeng 10cbm water tanker truck with 100m water spraying machine,
Anti- Dust , mist spray truck, mainly used for pollution prevention and control in coal yard, construction site, coal dust, sand-fixation, cement , enterprises of various open-air yard ecological slope protection. It can clean the street, suppress dust, , fire fighting, and clean air.
It save a lot of water compared to traditional water tanker truck.
Specifications:
1.Supply to USA,Europe,and Austrilia, South-east Asia, Africa, etc.
2.Matrial:carbon steel, stainless steel, aluminium alloy, etc.
3.Professional Perfomance special trucks supplier
4.specification
Whatsapp/Wechat/Mob.: 0086 13329899995.
Website: www.trucksinchina.com
main technical parameters of dongfeng 10cbm water tanker truck with 100m water spraying machine for sale
| Main Technology Parameter |
| Model Name |
CLW brand 100 meters disinfection vehicle |
| Driving Type |
4×2, |
| Color |
White color |
| Weights |
| Rated payload weight(kg) |
10000 |
| Curb weight(kg) |
10500 |
| Dimensions |
| Wheelbase(mm) |
4500 |
| Overall Dimension(mm) |
8700*2480*3750 |
| Max speed(km/h) |
95 |
| Engine |
| Engine model |
Cummins brand ISB180 50 |
| Emission standard |
Euro V |
| Engine type |
Vertical/in-line/water-cooling/ four-stroke/ supercharged inter cooler |
| No. of cylinders |
straight-4 cylinders, diesel |
| Displacement(L) |
5.9L |
| Max. output (kw) |
133kw (180HP) |
| Drive Line |
| Transmission |
6 forwards,1 reverse gear, manual operation |
| Steering |
Power steering |
| Brake |
Oil brake with vacuum pump |
| Axle |
| Front axle |
5 tons |
| Rear axle |
10 tons with ABS |
| Tire specification |
| Tire specification |
9.00R20 standard tire,6 tires+1 spare tire |
| Water tank |
| Water tank volume |
11 cbm |
| Max sprayer range for the dust suppression or disinfection (m) (no wind) |
100 meters, with double spray ring. |
| Nozzles qty(pcs) |
110 units |
| Covering areas |
20900/31400 |
| Motor for the sprayer |
30KW |
| Power for the drive pump |
7.5KW |
| Water pump type |
multi-stage centrifugal pump 1.5-2.0Mpa |
| Pitching angle |
-10° — 60° |
| Horizontal Rotation Angle |
+-120°/+-180° |
| Protection level |
IP55 |
| Power engine |
50 kw |
| Remote Control Distance |
100m |
| Control Method |
Remote control and manual control |
| Front spraying width |
>14 meters |
| Side spray width |
>8 meters |
| Rear spray width |
5-8 meters |
