|Place of Origin:||China|
|Certification:||CCC, ISO 9001|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||in bulk package, waxed|
|Delivery Time:||20 days|
|Payment Terms:||T/T, L/C|
|Color:||Different Color Upon Request, Free To Paint Company Logo||Truck Chassis:||Chinamade FOTON 4*2 RHD Diesel Truck Chassis|
|Price:||High Quality Factory Direct Sale Price||Reefer Unit:||Clients Choose To Install Chinamade/ USA CARRIER/THERMO KING Reefer Unit|
The is the closed van truck that is used to transport the frozen or fresh goods. This truck is made up of vehicle chassis, Polyurethane insulation van, refrigeration unit and temperature recorder. It is commonly used to transport the frozen food, dairy products, vegetable and fruit and vaccine medicine etc. For the special requirements of trucks,such as the meat transportation, the meat hook, aluminum alloy guide rail and ventilation slots etc. parts can be chosen and installed.
Chengli Special Automobile Co., Ltd manufactures refrigerator trucks since 2004s in China. With so many years’ experience in manufacturing, we Chengli Special Automobile Co. Ltd could manufacture and sell vaccine delivery vehicle, meat hook refrigerated truck, fruit and vegetables refrigerated truck, milk food transport refrigerator truck, insulation van truck, van refrigerated truck, freezer minibus, small refrigerated truck, medium freezer van truck, big refrigerated truck, refrigerator semi-trailer, freezer refrigerated vehicles, dongfeng brand cold room truck, ISUZU brand refrigerated truck, FAW refrigerated truck, FOTON refrigerated truck, Chang’an freezer van truck, Yuejin refrigerated truck, JMC refrigerated truck, CMAC refrigerator truck, Aoling refrigerated truck, the smallest refrigerated truck, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
Main technical parameters of FOTON 4*2 RHD 1.5T refrigerated truck is as below.
|Items||Descriptions||Specifications and Types|
|General||Truck Name||FOTON 4*2 RHD refrigerated truck|
|Drive Type||4*2 RHD|
|Curb Weight (kg)||1565|
|Overall Dimensions (L*W*H) (mm)||4745*1707*2445|
|Insulation van dimension(L*W*H)(mm)||2800,3000*1560*1570(mm)|
|Driver cab||FOTON TM series 1520mm width single row RHD driver cab|
|Engine Brand||QUANCHAI POWER|
|Max output (hp/rpm)||29KW/40HP|
|Emission Standard||Euro Ⅰ|
|Front/Rear axle||1.5ton front driving axle/2ton rear driving axle|
|Steering Wheel||RHD( right hand drive)|
|Gear Box||MG70 5 speed gearbox, manual|
|Cold Room||Box inner dimension(mm)||2800,3000*1560*1570(mm)|
|Box Side||Exterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure.|
|Box Floor||Baseboard adopts aluminum alloy air flow vents, which keep the air flow and fresh for long distance delivering.|
|Doors||Frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc.
The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability.
Door edgings, door locks and accessories use stainless steel materials.
If you're interested in our refrigerated truck, please send email to firstname.lastname@example.org or talk to Anita by Whatsapp: 0086 13329899995.

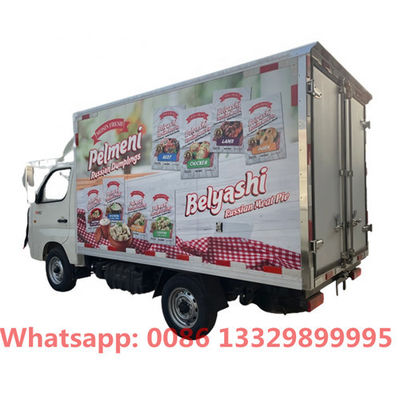

More pictures of FOTON 4*2 RHD Refrigerated minivan manufactured by Chengli Special Automobile Co., Ltd. is as below.
HOT SALE! FOTON 4*2 RHD 1.5T refrigerated minivan car for sale
Customized FOTON brand 4*2 RHD diesel engine mini day old chick transported van truck for sale, adopts FOTON 4*2 TM RHD(right hand drive) single row driver cab, 2400mm wheelbase, QC480Q 40hp diesel engine, 5 speed manual gearbox, 2tons rear axle, 175R14 tires, etc.
The overall dimension (L*W*H) of FOTON brand 4*2 RHD diesel refrigerated truck is 4745*1707*2445(mm); while the cold van box dimension(L*W*H) of SHACMAN Brand refrigerated truck is 2800,3000*1560*1570(mm)(mm). The loading capacity is up to 1.5T.
Exterior and interior of the SHACMAN brand cold van box vehicle are with FRP(Fiber Reinforced Plastic), and the middle with PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. Baseboard adopts anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. double rear door opened. Choose high quality Chinamade or USA imported CARRIER vehicle-powered refrigerating reefer , the lowest temperature is up to -15℃. And the reefer can be adjusted at the driver cab.
