FOTON XINGLIN M1 gasoline refrigerated truck adopts FOTON XIANGLIN 1520mm truck body, 2750mm wheelbase, DAM15KL 116hp diesel engine, DAT18R-5 speed manual gear, 175R14 tires*6, 121 rear axle, power steering, air conditioner, ABS, etc.
And the cold room box body dimension (L*W*H) of this FOTON XIANGLIN M1 gasoline refrigerated truck is 3120*1580/1620*1560 (mm); while the overall dimension (L*W*H) of this FOTON refrigerated truck is 5070*1765/1780*2490 (mm). Exterior and interior with FRP(Fiber Reinforced Plastic), and the middle with PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. Baseboard adopts anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. double rear door opened. Choose high quality China-made self-powered frozen refrigerating reefer, the lowest temperature is up to -5℃ to 15℃. And the reefer can be adjusted at the driver cab.
If you're interested in our refrigerated truck, please send email to truck0011@163.com or talk to Anita by Whatsapp: 0086 13329899995.

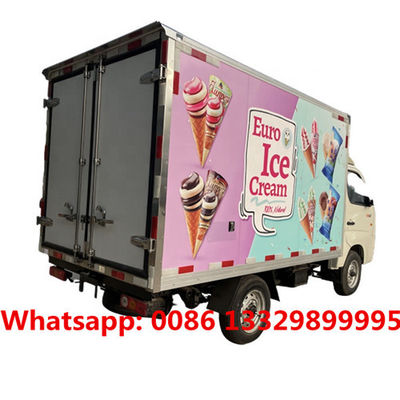

More pictures of FOTON 4*2 LHD gasoline refrigerated truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
HOT SALE! FOTON brand gasoline refrigerated truck
Good price and high quality FOTON brand 4*2 LHD gasoline cold van truck for sale
HOT SALE!
Main technical parameters of FOTON XIANGLIN M1 gasoline refrigerated truck manufactured by Chengli Special Automobile Co., Ltd. as below.
| Items | Descriptions | Specifications and Types |
| General | Truck Name | FOTON XIANGLIN M1 4*2 LHD gasoline refrigerated truck |
| Drive Type | 4*2 LHD, | |
| Payload (kg) | 1.5T | |
| Seating person | 2 | |
| GVW (kg) | 1615 | |
| Curb Weight (kg) | 1750 | |
| Overall Dimensions (L*W*H) (mm) | 5070*1765/1780*2490 | |
| Insulation van dimension(L*W*H)(mm) | 3120*1580/1620*1560 | |
| Driver cab | FOTON XIANGLIN 1520mm truck body | |
| Engine | Engine Model | DAM15KL |
| Engine Brand | Dong’an | |
| Fuel Type | Diesel | |
| Max output (hp/rpm) | 85KW/116hp | |
| Emission Standard | Euro Ⅵ | |
| Capacity (cc) | 1498 | |
| Chassis | Chassis Brand | FOTON |
| Tire Specification | 175R14LT 8PR*6 | |
| Wheelbase (mm) | 2750 | |
| Axle No. | 2 | |
| Steering Wheel | Left hand drive, | |
| Gear Box | 5 speed gearbox, manual | |
| Brake | Air brake | |
| Air-conditioner | No, can be installed | |
| Cold Room | Box inner dimension(mm) | 3120*1580/1620*1560 |
| Box Side | Exterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. | |
| Box Floor | Baseboard adopts aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. | |
| Doors | Frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc. The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability. Door edgings, door locks and accessories use stainless steel materials. |
|
| Refrigeration unit | Choose high quality China-made self-powered frozen refrigerating reefer, the lowest temperature is up to -5℃ to 15℃. And the reefer can be adjusted at the driver cab. | |
| Remark | The refrigerated truck can choose to install meat hangers, vent-slots, etc. and side doors. | |
