Place of Origin: | China |
Brand Name: | CLW |
Certification: | CCC, ISO 9001 |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | negotiable |
Packaging Details: | in bulk package, waxed |
Delivery Time: | 20 days |
Payment Terms: | T/T |
Supply Ability: | 20units/month |
Color: | Different Color Upon Request, Free To Paint Company Logo | Truck Chassis: | Chinamade IVECO Brand LHD Diesel Truck Chassis |
---|---|---|---|
Volume: | 16cbm-20cbm, With The Loading Capacity Of 13T-16T |
IVECO brand 16cbm 12T refuse compactor garbage truck for sale, factory sale price IVECO compacted garbage truck for sale
main technical parameters of IVECO brand 6*4 compacted garbage truck is as below.
Main Technology Parameter | |
Product Name | iveco 16m3 garbage compactor truck |
Driving Type | 6x4,left /right hand drive |
Color & Logo | Accept customization |
Weights | |
G.V.W(kg) | 25000 |
Curb weight(kg) | 10000 (Approx.) |
Dimensions | |
Wheelbase(mm) | 4600+1350 |
Overall Dimension(mm) | 9800×2500×3150(Approx.) |
Garbage collection capacity | 16 m3 |
Engine | |
Engine type | 4 stroke ,Water cooled, direct injection, turbo charger |
No. of cylinders | 6 cylinders |
Displacement(L) | 9.26L |
Max. output (hp/kw) | 280/205 |
Emission standard | Euro 3 (Euro 4 /5 optional) |
Drive Line | |
Transmission | FAST 9 speeds ,9 forwards,1 reverse gear,manual operation |
Steering | Power steering |
Brake | Air brake |
ABS | With |
Cab | |
Cabin | One and half cab,three passengers (2+ driver) all welded steel cab |
Standard configuration | Air conditioner ,heater, central lock ,power window .USB,AM/FM radio, two sun reflectors |
Axle | |
Front axle | 5 tons |
Rear axle | 20 tons |
Tire specification | |
Tire specification | 10.00R20 steel wire tire,10 tires+1 spare tire |
10m3 garbage compactor truck | |
Box volume | 16m3 / 18m3 |
Box material | Side 5mm,bottom 5mm |
Sewage tanker | 200L |
Compaction ratio | By volume not less than 5:1 |
Work cycle time | Not more than 35 seconds |
Hydraulic system pressure | 16Mpa |

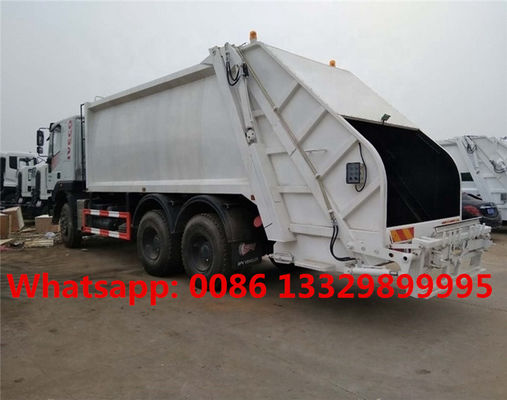

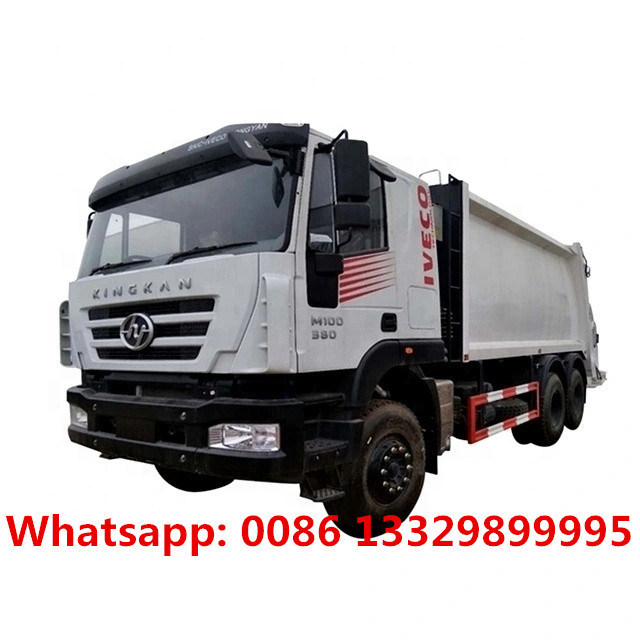

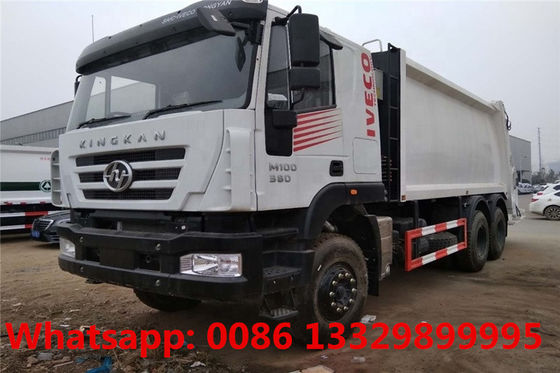

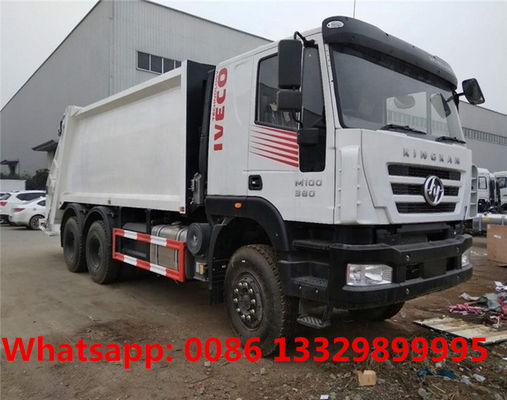

More pictures of IVECO brand 16cbm garbage compactor truck is as below.
If you're interested in our refuse compactor garbage truck, please send email to truck0011@163.com or talk to Anita by Whatsapp: 0086 13329899995.
Refrigerator truck is mainly consists of chassis, heat insulation box body, refrigeration unit and temperature recorders in the carriage with other optioanl accessories. Optional parts including meat hook, aluminum alloy rail, ventilation channel etc. We have mini type, middle-sized, large-scale refrigerator trucks for your choice with different brands model. |
|||||||
Application | |||||||
Refrigerator truck is closed van truck that used to transport the frozen or fresh goods, applies to short-distance transportation to supermarkets, vegetable markets, and stores in the city. According to customer requirements, it is converted into refrigerated trucks, insulated vehicles, refrigerated trucks, for various purposes such as transportation of medicines (medical vaccine transport vehicles), vegetables, fruits, milk, soft drink, ice cream, fresh & frozen meat, fish and other seafood. |
|||||||
Competitive advantages | |||||||
1. The "sandwich" board bonding type assembled by pieces is currently adopted by large domestic refrigerating truck manufacturers, and the refrigerating truck produced by this technology has high heat insulation performance. 2. Refrigerated car body structure: Polyester wet plate making process and glass fiber reinforced stainless steel column frame structure, using the most advanced fifth-generation fully enclosed polyurethane plate bonding method in the world. 3. The material of the panel: the inner and outer wall panels are made of domestic high-quality mechanism 2.2mm FRP; the intermediate insulation material is made of thick imported polyurethane; the thickness of the car body is 80mm; the thickness of the door is 80mm; the overall aluminum plate on the bottom plate, the color plate below, the imported polyurethane; 4. Accessories: 2.5mm aluminum alloy edging around the car, stainless steel wrap angle, stainless steel door lock, anti-collision rubber 4, stainless steel door frame, stainless steel hinge, energy saving lighting inside the box. 5. Refrigeration unit: The well-known domestic brand of the refrigeration unit Hanxue or Huatai overhead unit, the temperature of the car is 0 to 5 degrees and 18 degrees (optional with imported units Korea Hana, American Carrier, etc.). |
