HOT SALE! Good price new FAW brand TIGER V refrigerated truck for sale
The refrigerator truck is the closed van truck that is used to transport the frozen or fresh goods. This truck is made up of vehicle chassis, Polyurethane insulation van, refrigeration unit and temperature recorder. It is commonly used to transport the frozen food, dairy products, vegetable and fruit and vaccine medicine etc. For the special requirements of trucks,such as the meat transportation, the meat hook, aluminum alloy guide rail and ventilation slots etc. parts can be chosen and installed.
Customized FAW brand 4*2 LHD TIGER V refrigerated truck, adopts FAW Tiger V flathead single row driver cab, 3260mm wheelbase, CA498E2-12 Dachai 90KW/120hp diesel Euro 2 engine, 5 speed manual gearbox, 7.50R16 rail tires, air conditioner + air cut braking, etc.
And the cold room box body dimension (L*W*H) of this FAW TIGER V gasoline refrigerated truck is 4210×2010×2100 (mm); while the overall dimension (L*W*H) of this FAW refrigerated truck is 5990×2100×3100 (mm). Exterior and interior with FRP(Fiber Reinforced Plastic), and the middle with PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. Baseboard adopts anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. double rear door opened. Choose high quality China-made self-powered frozen refrigerating reefer, the lowest temperature is up to -15℃. And the reefer can be adjusted at the driver cab.
If you're interested in our refrigeated truck, please send email to truck0011@163.com or talk to Anita by Whatsapp: 0086 13329899995.

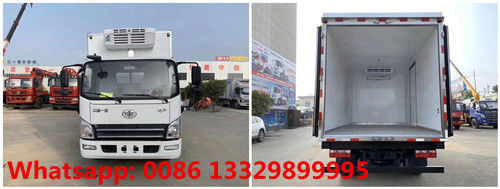

More pictures of FAW brand 4*2 LHD 3ton refrigerated truck is as below.
main technical parameters of FAW brand 4*2 LHD 3ton refrigerated truck is as below.
| Items |
Descriptions |
Specifications and Types |
| General |
Truck Name |
FAW brand 4*2 LHD 3ton refrigerated truck |
| Drive Type |
4*2 LHD, |
| Real loading capacity (kg) |
3,000 |
| Seating person |
2-3 |
| GVW (kg) |
4490 |
| Curb Weight (kg) |
2495 |
| Overall Dimensions (L*W*H) (mm) |
5990×2100×3100 |
| Insulation van dimension(L*W*H)(mm) |
4200×2000×2100 |
| Cold room volume |
17.6 cubage |
| Driver cab |
FAW 4*2 LHD TIGER V single row driver cab |
| Engine |
Engine Model |
CA498E2-12 |
| Engine Brand |
Dachai |
| Fuel Type |
Diesel |
| Max output (hp/rpm) |
120hp/90KW |
| Emission Standard |
Euro Ⅱ |
| Capacity (cc) |
3168 |
| Engine type |
4 cylinders, inter-cooling diesel engine |
| Chassis |
Chassis Brand |
Dongfeng |
| Tire Specification |
7.50R16 |
| Wheelbase (mm) |
3260 |
| Axle No. |
2 |
| Steering Wheel |
Left hand drive, RHD is ok |
| Gear Box |
5 speed gearbox, manual |
| Brake |
Air brake |
| Air-conditioner |
Yes |
| Cold Room |
Box inner dimension(mm) |
4200X2000X2100 (mm) |
| Box Side |
Exterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. |
| Box Floor |
Baseboard adopts aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. |
| Doors |
Frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc.
The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability.
Door edgings, door locks and accessories use stainless steel materials.
|
| Cooling unit |
Huatai brand F450 frozen cooling unit |
Famous China-made Huatai brand F450 frozen dependent cooling unit, the temperature can be adjusted from zero degree to 18 degree below zero, etc. And the cooling unit can be adjusted at the driver cab. |
| Remark |
The refrigerated truck can choose to install meat hangers, vent-slots, etc. and side doors.
|
