China famous FAW brand LHD 4*2 15ton refrigerated truck for sale, FAW brand 10tons-15tons cold room truck for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of refrigerated truck, refrigerator truck, insulation body truck, reefer van truck, freezer van truck, etc. in China. With many years'experience in developing, Chengli Special Automobile Co., Ltd. could produce and supply high quality and competitive ISUZU refrigerated truck, dongfeng refrigerator truck, FAW freezer van truck, Foton reefer van truck, JAC insulation body truck, JMC refrigerated truck, refrigerated van semitrailer, etc. And the cooling units of the refrigerated truck manufactured by Chengli Special Automobile Co., Ltd. can choose China faous brand or exported ones, and the temperature in the insulation body can be adjusted from -5 degree to -18 degree.
1.Famous chassis refrigerated truck
2.Good performance refrigerated truck
3.Factory price refrigerated truck
4.Fully past ISO &3C refrigerated certificate.
More pictures of the FAW 15ton refrigerated truck for sale
More information, please feel free to contact with Ms. Anita Deng. please send email to truck0011@163.com.
Whatsapp/Wechat: +86 13329899995
QQ: 504873236
Website: www.trucksinchina.com
Product Parameter of FAW brand refrigerated van truck manufactured by Chengli Special Automobile Co., Ltd. as below
|
Item
|
Parameter
|
|
Production name
|
refrigerator truck
|
|
vehicle model
|
/
|
|
Engine
|
Engine model:CA6DF3-18E3
|
|
Engine manufacturer:China faw group
|
|
Exhaust:6740ml
|
|
Power:143kw
|
|
Chassis model
|
CA5160XXYPK2L5EA80-3
|
|
Tire
|
Tire specification:9.00-20
|
|
Number of tire:6
|
|
Axle
|
Number of axles:2
|
|
Axle-load:5990/10000
|
|
Wheel base(mm):5720,5800,5390,5470
|
|
Traction system
|
4*2
|
|
Overall dimensions(mm)
|
9990×2530×3820
|
|
Upper box body size(mm)
|
7410×2310×2310
|
|
GVW(kg)
|
15990
|
|
Curb weight(kg)
|
7795
|
|
Rated load(kg)
|
8000
|
|
F / R track base(mm)
|
1800/1800
|
|
F/R overhang(mm)
|
1312/2958
|
|
Approach / departure angle(°)
|
22/10.2
|
|
Max speed(Km/h)
|
110
|
|
Equipment and fuction
|
Equipment: chassis, the heat preservation box body--standard material is glass fiber reinforced plastic,8mm polyurethane insulation layer, Standard back open doorand refrigeration unit;
Optional: polyurethane material, color steel plate, stainless steel, etc,5mm insulation layer, side open door;
Function: transport frozen foods (ice truck), dairy (milk truck) fruits and vegetables (fresh transporter) vaccine and drug transporter (vaccine truck), etc
|
|
Product cycle
|
25-30 days
|
|
Warranty
|
12months, from the date of supply
|
|
FOB Shanghai
|
|
More pictures of hot sale FAW brand 15tons cold room truck for fresh fruits and vegetables as below

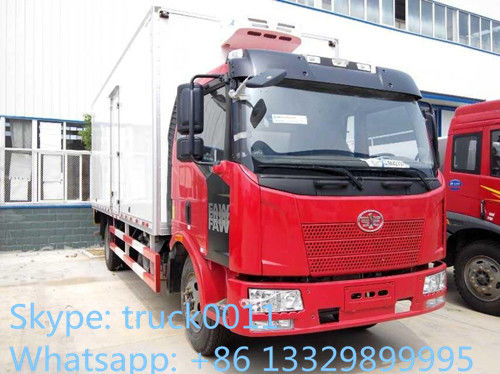

FAW brand refrigerated truck for sale
high quality and best price FAW brand cold room truck for sale
The interior and exterior of the insulation body can be chosen the popular glass steel material, or stainless steel, aluminum alloy material, and the insulation van with strengthen, etc. the middle is PU slices with vacuum negative pressure one-formed casting, and the thickness is 80mm, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. The refrigerated van has the advantages of high strength; strong anti-corrosion and aging resistance, low heat-conducting property, non-pollution, non-easy destroy, etc. And the baseboard is aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. There are aluminum alloy ventilation slots on the baseboard. The frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc. The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability. Door edgings, door locks and accessories use stainless steel materials.
