hot sale best price dongfeng 153 10 cubic meters fecal suction truck, dongfeng 4*2 190hp diesel vacuum truck for sale
Fecal tanker Truck is mainly used for cleaning urban and rural public convenience. Suction-type is best.
To improve human living environment, fecal suction truck can reduce secondary pollution in urban and rural.
We can produce all kind of different tonnage of , we have light, medium and large capacity hopper of suction truck.
According to your needs, choosing the fecal suction truck which one is your want to buy.
If you're interested in our fecal suction truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
main parameters of hot sale dongfeng 190hp fecal suction truck manufactured by Chengli Special Automobile Co., Ltd. as below.
|
Item
|
unit
|
parameter
|
|
Vehicle model
|
|
CLW5110GXWT3Sewage Sucktion Truck
|
|
Chassis model
|
|
EQ1141G7DJ
|
|
Overall dimensions
|
mm
|
8200×2470×3080
|
|
|
Fact cubage
|
L
|
8000
|
|
Mass in working order
|
kg
|
Appro×8255
|
|
Body internal dimensions
|
mm
|
4500×1500×1500
|
|
Wheel base
|
4500
|
|
F/R track base
|
1940/1860
|
|
Approach/departure angle
|
°
|
34/18
|
|
Exhaust/hp
|
ml/kw
|
5880/132
|
|
Max speed
|
km/h
|
90
|
|
Tire specification
|
10.00-20
|
Engine type
|
EQB180-20
|
|
Traction system
|
4×2
|
transmission
|
6-speed with over drive
|
|
Number of axles
|
2
|
Electric system
|
24v
|
|
Operation control system
|
Electrically hydraulic control
|
Allowable passengers in cab
|
3
|
|
Equipment
|
Equipped with special vacuum pump(rating rotate speed=1400r/m,min rotate speed 800r/m, max suction lift 6m, vacuum 500mmHg, clockwise)
Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment
Time for full sucktion 5min
|
|
Engine
|
DongFeng Cummins Environmental Protection,supercharge,diesel engine
|
|
Production cycle
|
10-15days
|
|
Warranty
|
12 month,from the date of supply
|
fecal suction truck, fecal tanker truck, suction tanker truck.

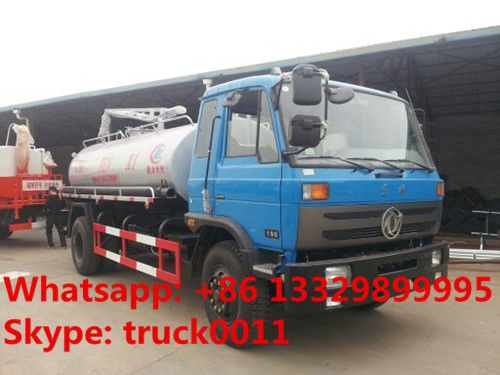

More pictures of dongfeng 10 cubic meters fecal suction trucks as below.
The cesspoolage tank trucks manufactured by Chengli Special Automobile Co., Ltd. adopt Wugang GB high quality sheets. The functions of the sludge truck is pumping and delivering feces, mud, bulk oil, etc. liquids. equipped with the leading chengliwei vacuum pump, with feces view window, one discharging open, cleaning device, mobile hanger rod, with 5m length hose, oil separator, anti-overflow valve, metal coating tanker, etc. choosing to install over-flow warming alarm device, double pump, etc.
The cesspoolage truck is widely used to transport liquid manure, slurries, crude oils, and other liquid with small suspending impurity and mainly used in such conditions, including septic tanks, gutters, sewers, toilets, and more. The discharging has high pressure discharging and self-discharging, etc. The time of sucking full the feces tank is ≤6min, the vertical distance is ≥7m, the rated speed is 1450r/min, the flow is 60m3/h..
All of our trucks are approved ISO9001-200 International Quality System Certificate and CCC certificate. And “CLW” brand is the famous brand in China.
