dongfeng 145 10ton dump truck for sale, hot sale export model dongfeng LHD 170HP diesel dump tipper truck for sale
Dump truck is also called dumper,dumper truck,tipper,tipper truck,etc. The dump truck mainly used to transport sand, gravel, stone, mineral,etc.
As a professional special vehicle manufacturer in China,dump trucks manufactured by Chengli Special Automobile Co. Ltd. are mature and with many features. We can customize the dumper according to your requirement.
According to the loading capacity, we have mini dump truck, heavy duty dump truck. According to drive type, we have4x2 dump truck,6x4 dump truck,8x4 dump truck. According to chassis brand, we have dongfeng dumper truck, howo dumper, foton tipper truck, beiben tipper, jac tipper truck, etc
The box of our dumper truck are made by high quality carbon steel.The thickness of cargo box can be side 3mm, bottom 4mm to side 8mm to bottom 10mm. You can select the thickness according to the goods you transport.
If you're interested in our FOTON dump tipper truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
Technical parameters of dongfeng 10 ton dump truck
|
Items
|
Descriptions
|
Specifications and Types
|
|
General
|
Truck Name
|
Dump truck
|
|
Drive Type
|
4*2, lefthand driveor right hand drive
|
|
Fact LoadingCapacity(kg)
|
10000
|
|
Gross Vehicle Weight(kg)
|
15990
|
|
CurbWeight (kg)
|
6295
|
|
Overall Dimensions L*W*H(mm)
|
7000×2490×2980
|
|
Engine
|
Engine Model
|
B170 33
|
|
Fuel Type
|
Diesel
|
|
Power
|
125kw/170HP
|
|
Emission Standard
|
EuroIII
|
|
Displacement(ml)
|
5900
|
|
Engine Type
|
4 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling
|
|
Chassis
|
ChassisBrand
|
Dongfeng
|
|
Front/Rear Axle Load(KG)
|
5990/10000
|
|
Tire No.
|
6
|
|
Tire Specification
|
9.00-20 Nylon tire or 9.00R20 steel tire
|
|
Wheelbase (mm)
|
3950
|
|
Axle No.
|
2
|
|
Gear Box
|
6speedforward with 1 reverse,manual
|
|
Brake
|
Airbrake
|
|
Air Conditional
|
Optional
|
|
Front/rear suspension(mm)
|
1430/1860
|
|
Leaf Spring No.
|
7/9+6
|
|
Tipping system
|
Box inner dimension(mm)
|
4480x2210x800
|
|
Box material
|
Carbon steel,side 3mm,bottom 4mm
|
|
Hydraulic cylinder no.(set)
|
2
|
|
Hydraulic cylinder diameter(mm)
|
110
|
|
Hydraulic cylinder position
|
At the center of the truck bottom
|
|
Discharge type
|
Rear tipping
|

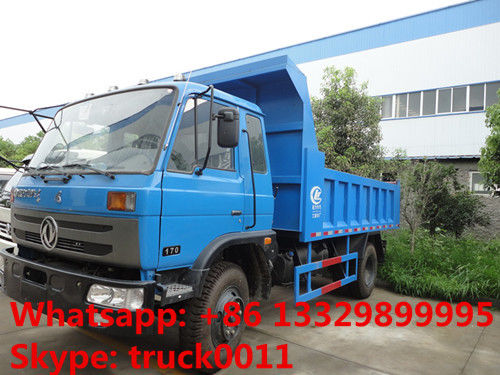

Pictures of 4x2 dongfeng 10 ton dump truck for sale
dongfeng 145 170hp dump truck for sale
Best price dongfeng brand 10tons tipper truck for sale
More information, please feel free to contact with us.
