Place of Origin: | China |
Brand Name: | CLW |
Certification: | CCC, ISO 9001 |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | negotiable |
Packaging Details: | in bulk package, packed |
Delivery Time: | 15 days |
Payment Terms: | T/T |
Color: | Differnet Color Upon Request | Price: | High Quality Factory Direct Sale Price |
---|---|---|---|
Material: | High Quality Foodgrade Stainless Steel Material | ||
Highlight: | milk truck,milk tank,stainelss steel tank truck for sale |
Foton auman 8*4 stainless steel food grade 25cbm milk truck for sale, FOTON 25,000L stainless steel fresh milk truck for sale
Foton auman 8*4 milk tank, adopts high quality Foton aumna 8*4 original chassis, ETX 2420 flathead luxurious driver cab with original air-conditioner, 1860+4700+13009mm wheelbase, Shanghai diesel Euro 4 270hp engine, fastgear 9 speed transmission, 457 rear bridge, 11.00R20 tyre, etc.
Foton auman 25cbm milk truck with five components, The outer layer with insulation layer to avoid the fresh milk going bad. The inner tanker is polished by the special equipment, and making sure no milk hanging. The inner tanker is smooth, non sharp angle, etc. There is CIP(cleaning device) installed for the five rooms.
There are three layers of the milk semi-trailer, the inner tanker is manufactured by 4mm thick 304/2B food grade stainless steel; the middle is 80mm PU foam insulation layer, and 60mm PU foam of the manhole part, the temperature will be changed one degree within 24 hours; the exterior of the tanker is 1.2mm thick 304 stainless steel mirror panel.
The inner tanker has cleaning device, cleaning rod(cleaning ball), cleaning pipe(with the diameter of 38mm), turntable cleaning sprayer, etc. Automatically cleaning when with water source.
If you're itnerested in our milk truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
main technical parameters of hot sale FOTON AUMAN 8*4 MILK TANK TRUCK as below
Main Specifications | |||
Product Brand | CLW | The first Batch | 271 |
Product Name | Milk Truck | Product Model | CLW5311GNYB4 |
Total Weight (Kg) | 31000 | Volume(m3) | 16.31 |
Rated load(Kg) | 15600,15535 | Overall Dimension(mm) | 11875×2500×3720 |
Curb Weight(Kg) | 15270 | Cargo Compartment Size(mm) | ×× |
Max seats(man) | Articulated Vehicle Total Weight (Kg) | ||
Cab seats (man) | 2,3 | Payload utilization factor | |
Approach angle/departure angle(°) | 18/11 | Front overhang/Rear overhang(mm) | 1555/2460 |
Number of axles | 4 | Wheelbase(mm) | 1860+4700+1350,1860+4700+1300 |
Axle Load(Kg) | 6500/6500/18000 | Maximum Speed(Km/h) | 90 |
Chassis Technical Parameters | |||
Chassis Model | BJ1312VNPJJ-XA | Chassis Name | Truck Chassis |
Brand Name | Europe's | Manufacturing enterprise | Beijing foton Daimler automotive co., LTD |
Overall Dimension(mm) | 11875×2495×2930,3370,3640 | Number of wheels | 12 |
Approach angle/ Departure angle(°) | 18/13 | Wheel specification | 10.00R20,10.00-20,11.00R20,11.00-20,12R22.5 |
Plate spring count | 10/10/10,3/3/5 | Front gauge(mm) | 1954/1954 |
Fuel Species | Diesel | Track rear(mm) | 1860/1860 |
Emission standard | GB17691-2005,GB3847-2005 | ||
Engine type | Engine manufacturing enterprise | Displacement(ml) | Power(Kw) |
SC9DK310Q4 | Shanghai diesel engine co., LTD | 8820 | 228 |
More pictures of Foton Auman 8*4 milk truck for sale as below.

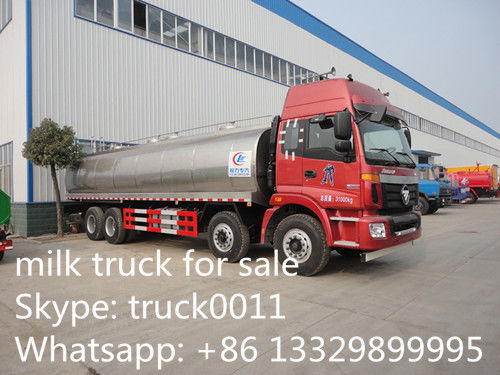

FOTON AUMAN 8*4 25,000L stainless steel milk truck for sale
More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
