|Place of Origin:||China|
|Certification:||CCC, ISO 9001|
|Minimum Order Quantity:||1 unit|
|Delivery Time:||20 days|
|Supply Ability:||20 units /month|
|Minimum Order Quantity:||1|
|Color:||Different Color Upon Request||Price:||High Quality Factory Direct Sale Price|
|Axles:||High Quality BPW/FUWA Axle||Material:||High Quality Food Grade Stainless Steel Material|
stainless steel tank,
food grade tank trailer
0BPW/FUWA 3 axles 45,000L fresh milk tank semitrailer for sale, factory direct sale best price CLW brand stainless steel liquid food transported tank trailer
Fresh milk transport vehicle modification configuration: the tank structure is divided into three layers: insulation layer, insulation layer and tank body.
One. The body of the frame can be made of food grade 304 material stainless steel plate, and the tank body can be made into 2-3 cabins. The tank body requires smooth and no acute angle. A cip (cleaning device) tank is provided in each milk tank with a washer.
Second, the middle of the tank is an insulation layer, which has a heat preservation effect to prevent deterioration of fresh milk. The temperature change does not exceed 1 degree for 24 hours at a temperature difference of 30 degrees. The insulation material is insulated with 80 (mm) thick polyurethane foam material.
Third, the outer layer of the tank (protective layer of the insulation layer) is made of 2mm thick 304L stainless steel. The outer skin and trunk of stainless steel are beautiful in appearance, the whole body is beautiful in appearance, scientific in structure, light in weight and good in strength.
4. Each single warehouse has a separate discharge port (self-flow port) and a feed port (can port).
5. Optional chiller, rock wool insulation, exhaust gas circulation heating, and stainless steel pump to make the vehicle have a suction function.
3 axles milk semitrailer is with the overall dimension(L*W*H) of 12600×2500×3850, adopts 13ton fuhua axles, 12 sets of 11.00R20 rail tyre, 28ton outriggers, with ABS, etc.
This time the Mongolia customer jut order 3 axles 45cbm milk semitrailer. And there are five components of the tank semitrailer, the outer layer with insulation layer to avoid the fresh milk going bad. The inner tanker is polished by the special equipment, and making sure no milk hanging. The inner tanker is smooth, non sharp angle, etc. There is CIP(cleaning device) installed for the five rooms.
There are three layers of the milk semi-trailer, the inner tanker is manufactured by 5mm thick 304/2B food grade stainless steel; the middle is 80mm PU foam insulation layer, and 60mm PU foam of the manhole part, the temperature will be changed one degree within 24 hours; the exterior of the tanker is 1.2mm thick 304 stainless steel mirror panel.
The inner tanker has cleaning device, cleaning rod(cleaning ball), cleaning pipe(with the diameter of 38mm), turntable cleaning sprayer, etc. Automatically cleaning when with water source.
If you're interested in our fresh milk truck, please feel free to send email to firstname.lastname@example.org or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
main technical parameters of hot sale CLW brand 45,000Liters fresh milk tank semitrailer as below
|40000L-50000L milk tank trailer for sales|
|Tank body material||5mm Q304 Stainless steel|
|End plate||5mm Q304 Stainless steel|
|Manhole cover||2 sets with 2 breather valve,,stainless steel manhold cover|
|Bottom valve||1 set SS bottom valve|
|Discharging valve||2 set discharging valve in the behind of tank|
|Discharging pipe||2 pcs polythene hose ,8m long|
|Main Beams||Special design I beam,connected by bolts and nuts with tank body,removable from tank body for spearate transportation|
|Landing gear||JOST brand ,two speed,manual operating ,heavy duty lading gear|

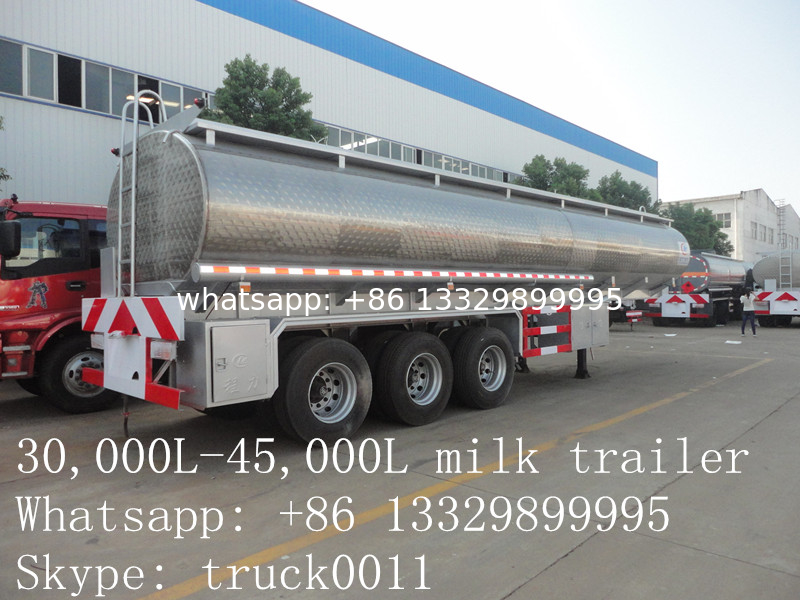

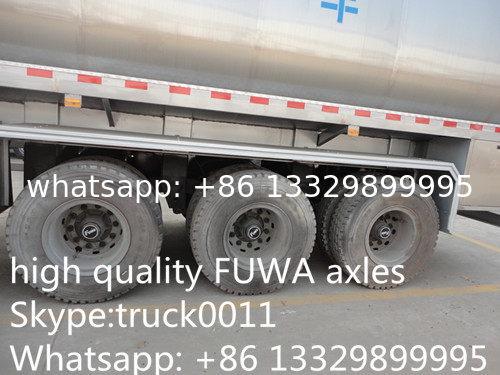

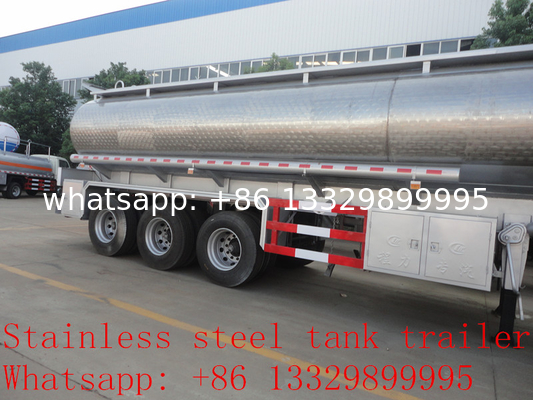

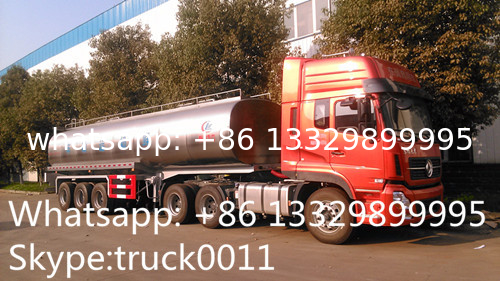

Look at the pictures of 3 axles 45cbm milk tanker semitrailer manufactured by Chengli Special Automobile Co., Ltd.
high quality and best price CLW brand milk tank trailer for sale
hot sale 45,000Liters fresh milk trailer
More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/wechat: +86 13329899995
