|Place of Origin:||China|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||in bulk package, waxed|
|Delivery Time:||20 days|
|Payment Terms:||T/T, L/C|
|Supply Ability:||20 units/month|
|Color:||Different Color Upon Request||Price:||Cheapest Price With High Quality|
|Truck Brand:||China High Quality JAC 4*2 Truck Chassis|

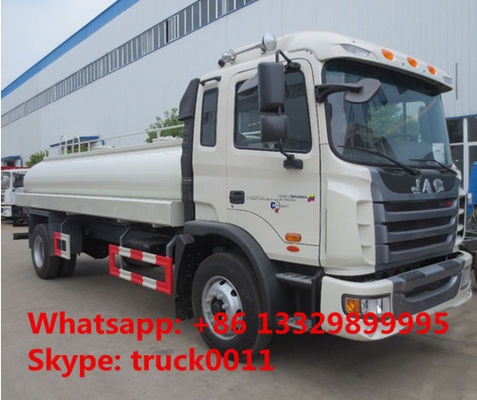

CLW brand JAC 4X2 10000L water cannon vehicle for sale, JAC 4*2 LHD 10m3 water carrier vehicle with cheapest price
JAC water truck is also called spray truck, multifunction watering truck, landscaping watering truck, water tanker, water wagon etc., widely used in road rinsing, landscaping etc., It possess multi features such as watering, dust suppression, spraying pesticide, cleaning rail, drain, carrying water, emergency fire fighting, etc.
Water truck is made up of water tank and pump drainaging system.
1, tank, adopts high quality 4mm thickness hot rolled plate, and the double head ends with 5mm hot rolled plates. There is two units of anti-wave plates inside the tank. In order to last the using life, the water tank is with Phosphating coating treatment, and also painted with anticorrosive varnish.
2, Pump drainaging system, chooses Japan technical CLW brand 60-90 model water pump. And the PTO choose to install dongfeng 145 special PTO; the valves choose the high quality CLW brand aluminum alloy ball valves; the pipeline adopts high quality perfect galvanized pipes, etc.
The quality and functions of water trucks
Front spraying: fitted with 360° rotatable straight nozzles controlled by driver cab. The flush width can reach ＞15m.
Rear sprinkling, fitted with 2 rear spraying devices, mainly used to clean the road, make the road clear. When spraying as fan-shaped, the spraying width can reach ＞25m.
High spraying: working platform equipped with water cannon, the spraying range can reach 28m, the water cannon can adjust to heavy rain, moderate rain, drizzle or mist, etc. mainly used for landscaping greening, also sued as fire truck in urgency.
Side sprinkling: install 2 side spraying nozzles behind the truck, mainly used to spray, water, dedusting of the greening, etc.
Self-sucking: install with 2 suction sleeves, one absorber,
If you're interested in our water sprinkling truck, please feel free to send email to firstname.lastname@example.org or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
Factory sales of factory direct supply of JAC 10m3 water truck manufactured by Chengli Special Automobile Co., Ltd. as below
|Vehicle Main Dimensions||Cab type||single sleeper, air conditioning, left driving, radio,|
|Max. Drive Speed (km/h)||90|
|Chassis parameter||Chassis Model||HFC1165K1R1ZF|
|Chassis manufacturer:||JAC Motor Co., Ltd.|
|Transmission||Manual , 6 shift (6 forward and 1 reverse)|
|Tire||10.00-20 16PR,10.00R20 16PR|
|Engine parameter||Engine Brand||CA6DF4-18E4|
|Emission Standard||Euro 3 / Euro 4|
|Superstructure Parameter and main performance||Tank volume(L)||10000L|
|Tank material||4 mm good quality carbon steel ,Square round shape|
|Water pump||High quality water pump, suction lift>6m|
|Standard configuration||fire interface, gravity valve, and filter gauze, front(rear, side)sprinkler, Rear working platform with water cannon,two 3m long water pipe|
|Main performance||sprinkling width>14m, water cannon range>28m|
|Main function||Watering, carrying water, drought, emergency fire fighting|
|Optional||Operation in the cab, long warning light on the top of the cab, LED arrow lights on the rear of the tank, CD|
1).Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction.
2).Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform.
3).The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30M.
4).Equipped with fire coupling, flow valves, filter screen and water level gauge.
5).According to customers’ request, the crane, high working platform and spraying machine also can be equipped.
6).Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc.
Multi-faceted of factory direct supply of JAC 10m3 water truck
JAC brand 4*2 10m3 water truck for sale
factory direct sale JAC water tank with cheapest price
More information, please feel free to contact with Ms. Anita.
Whatsapp/wechat: +86 13329899995
