hot sale duck baby van truck for sale
the truck chassis devices for ISUZU double cabs 4*2 LHD duck baby van truck e as below
| Product name |
ISUZU double cabs 4*2 day old chick transported truck for sale |
| Overall dimension(L*W*H)(mm) |
5995X1930X2870(mm) |
Chick van box dimension(L*W*H)mm |
3150X1750X1750(mm) |
| Drive type |
4*2 LHD double cabs |
Total mass |
4480kgs |
| Gearbox |
ISUZU 5 pseed gearbox, 5 forward gears & 1 reverse manul |
Tyre specification |
7.00-16 *6+1 |
| Power steering |
Yes |
driving axle |
2tons/4tons |
| braking system |
oil braking |
wheelbase |
3360mm |
| electronic ssytem |
24Volts |
Driver cab |
ISUZU 4*2 double cabs with air conditioner |
| Engine |
4JB1CN |
Emission standard |
Euro 4 |
| Engine power |
72kw/98hp |
Displacement(ml) |
2771ml |
Main parameters for the insulation van box as below.
| Performance and consumption |
| Heating system |
Yes, choose to install watering heaters |
| Cooling system |
Yes , China-made reefer or USA imported reefer upon request |
| |
Air duct installed on the floor for air flow |
Two lines as the picture show |
| Dimension |
| Overall dimension |
Length |
5995mm |
| Width |
1930mm |
| Height |
2870mm |
| Chick van box body |
Length |
3150mm |
| Width |
1750mm |
| Height |
1750mm |
| Material |
Exterior and interior |
High quality with whole skeleton of the SANDWICH plate bonding process. Inner plate use high quality fiberglass and exterior plate with Fiberglass Reinforced Plastic (FRP) |
| Middle insulation layer |
Middle insulation layer with high quality 80mm PU foam sheets |
| Chick nos. |
About 10,000 |
| Blind windows |
Totally6 sets of blind windows with sliding doors for the left and right van sides (as the pictures show), and two ones both for front and rear van body.
Windows:6 sets
|
| electronic ventilator fans |
Front side with 2 sets electronic ventilator fans and 2 sets for rear van
2+2+4 sets
|
| Square steel tube type racks/stocking shelves |
Two sets of racks as the picture show |
| remark |
we can customize the day-old chick trucks upon request |
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of refrigerated trucks, insulation body van box, and day-old chicks transported truck in China. With many years' development, We can offer different kinds of day old chicks trucks. And the baby chick trucks manufactured by Chengli Special Automobile Co., Ltd. adopts high quality Fiberglass Reinforced Plastic (FRP) for exterior and interior layer, and the middle insulation layer with 80mm PU foam sheets.
We can design and manufacture day-old chicks transported van trucks upon request, installing with cooling system, heating system, Ventilation system, windows and fans, etc.
More pictures of hot sale ISUZU double cabs day old chick transported truck manufactured by Chengli Special Automobile Co., Ltd. as below.

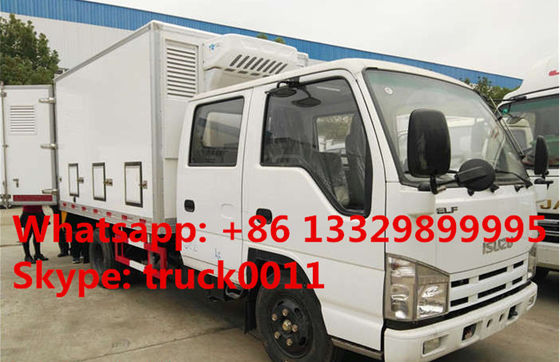

ISUZU brand day old chick transported truck for sale
ISUZU brand 4*2 LHD livestock baby ducks transported truck for slae
