Hot sale Euro 5 gasoline 61hp JAC brand mini mobile LED digital advertising truck for sale, Factory sale best price JAC mini 2/3 sides LED billboard truck,
PIXELS: 8mm(P8)
One side: 2304*1408＝3.14
Two Sides(left + right): 3.14*2=8.28m2
Back back: 960*1280＝1.64m2
The overall dimension(L*W*H) of JAC Mobile LED truck:4750,5100 * 1900 * 2700 (mm),
1, the right side of the driver cab is with high quality P6 HD waterproof and shake-proof full color outdoor screen (screen area: 2304*1408＝3.14㎡),choose to install the side screen is with hydraulic lifting stage( lifting height: 1.5m) and 4 sets manual/hydraulic outriggers.
2, the left side of the driver cab is with word roller light-box with automatically switching format advertisements; and the exterior with tempered glass or left and right sides with P6 screens
3, the rear part screen is with single color word screen (screen area: 960*1280＝1.64㎡)
4, truck mounted diesel generator adopts high quality YIHU 9KW/6.5KW gasoline generator unit.
5, truck trim: 5cm thickness composited steel box body frame, FRP material body, wooden floor, 4 sets of waterproof Audio, one set amplifier, intelligent Mechatronics controlling system, Circulating ventilation cooling system, safety intelligent Automatic switching system for inside and outside of the network, high ability Mute generator set, Gigabit flow Media control system.
Remark: the computer is with English words, English operation system and Software playback system.
If you're interested in our mobile LED advertising truck, please send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.

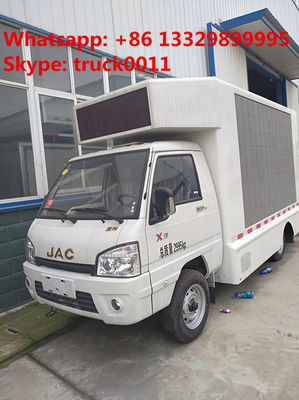

More pictures of hot sale JAC brand mini gasoline mobile LED advertising billboard truck as below
main technical parameters of hot sale JAC mini gasoline mobile LED advertising vehicle as below
| Main technical parameters |
| Product name |
jac MOBILE LED billboard truck for sale |
| Total mass(Kg) |
2995 |
Diesel generator |
Yihu 6.5KW/9KW gasoline generator unit |
| Curb mass(Kg) |
2865(Kg) |
Overall dimension(L*W*H)(mm) |
5000x1660x2500(mm) |
| Side screen area |
2304*1408＝3.14㎡ |
Rear screen area |
960*1280＝1.64m2 |
| Seated person |
2 |
Truck mounted computer |
Full ENGLISH word Computer |
| Approach/departure angle(°) |
32/15(°) |
Front/rear suspension(mm) |
910/1390(mm) |
| Axle nos. |
2 |
Wheelbase(mm) |
2700 |
| Axle load(Kg) |
1445/1550 |
Max speed(Km/h) |
105 |
| Truck chassis |
| Truck chassis model |
HFC1030PW6E1B7DV |
Manufacturer |
JAC company |
| Tire specification |
175R14LT |
Tire nos. |
4+1 |
| Front tread(mm) |
1260 |
Rear tread(mm) |
1260 |
| Steel spring |
5/3 1,5/4 |
Gearbox |
5 speed gearbox |
| Emission standard |
Euro Ⅴ gaoline |
| Engine model |
Manufacturer |
Displacement (ml) |
Power (Kw) |
| LJ465Q-2AE |
Liuzhou wuling |
1051 |
45/61.2hp |
