HOT SALE! DONGFENG TIANLONG 6*4 LHD 290hp diesel 20CBM garbage compactor truck for sale,
Customized dongfeng tianlong 6*4 LHD 20CBM compacted garbage truck, adopts dongfeng tianlong KL flathead luxurious driver cab, D6.7NS6B290 Cummins 290hp diesel engine, fastgear 9 speed gearbox,11.00R20rail tires*10+1,4350+1350mm wheelbase, etc.
The volume of dongfeng tianlong 6*4 garbage compactor truck is 20cbm.
Chengli brand Garbage compactor truck advantage as below.
1 Dual operation both at the rear of compactor garbage truck and inside cabin , easy control
2 Famous brand hydraulic pump to drive hydraulic valve to keep garbage compactor truck safety
3 Cheap price , one year warranty
4 Garbage bin lifting system could design as customer’s requirement .
5 Lock system is operated by machinery hydraulic system can reduce second pollution mostly.
Customized DONGFENG TIANLONG 20cbm garbage compactor truck, adopts dongfeng tianlong luxurious driver cab, Cummins 290hp diesel Euro 6 engine, fastgear 9 speed gearbox, 11.00 rail tires,4350+1350mm wheelbase, etc.
If you're interested in our garbage compactor truck, please send email to truck0011@163.com or talk to Anita by WHatsapp/Wechat/Mob.: +86 13329899995.

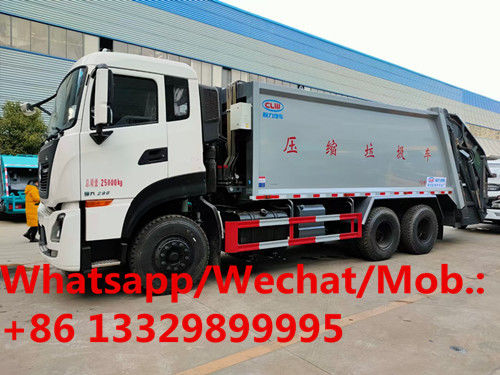

More pictures of dongfeng 20cbm garbage compactor truck manufactured by Chengli Special Automobile Co., Ltd. as below.
main technical parameters of Dongfeng tianlong 6*4 LHD 20m3 garbage compactor truck as below.
| 1 |
Product name |
Dongfeng tianlong 6*4 LHD 20m3 garbage compactor truck (CL5251ZYS6HQ)
|
| 2 |
Truck chassis model |
DFH1250
|
| 3 |
Overall dimension(L*W*H) |
10185,10520×2550×3450
|
| 4 |
Total mass(kgs) |
25000 |
| 5 |
Curb mass(kgs) |
15150,14700 |
| 6 |
Rated mass(kgs) |
10000 |
| 7 |
Volume |
20m3 |
| 8 |
Max speed |
89kw/h |
| 9 |
Wheelbase |
4350+1350 |
| 10 |
Axle nos. |
3 |
| 11 |
Driver cab |
Dongfeng 6*4 LHD one row and a half driver cab with power steering and air cut braking. Air conditioner is selective |
| 12 |
Approach/departure angle(°) |
20/11 |
| 13 |
Front/rear suspension (mm) |
1480/2825, |
| 14 |
Front/rear tread(mm) |
2010;1860/1860 |
| 15 |
Tire specification |
11.00R20*10+1 |
| 16 |
Spring |
3/10, |
| 17 |
Engine model |
D6.7NS6B290 |
| 18 |
Rated power |
213KW/290hp |
| 19 |
Displacement(ml) |
6700ml |
| 20 |
Fuel type |
Diesel |
| 21 |
Emission standard |
Euro 6 |
| 22 |
Gearbox |
9 speed gearbox, manual |
| 23 |
Axle load |
7000/18000(double axles) |
| 24 |
Color |
Different color upon request |
| 25 |
Wastes van |
Solid arc-shape box body of strength beam and steel plate welded |
| 26 |
Wastes van material |
High quality China standard light duty steel |
| 27 |
Operation way |
PLC control way |
| 28 |
Loading and discharging way |
Rear overturning mechanism |
| 29 |
Compacted way |
Bi-directional compression |
| 30 |
Wastes compacting density |
≥0.8tons/m3 |
| 31 |
One working circle time for loading and discharging |
≤30s |
| 32 |
Color |
White color upon request |
CLW Brand garbage compactor trucks are also called rear loader garbage truck, wastes collecting vehicles, etc. This kind of garbage truck is a kind of special purpose vehicle, mainly used for collecting, transporting and discharging bagged wastes, barreled wastes, bulk household wastes in towns and cities, etc.The wastes is pressured and pushed into the wastes van by the truck mounted wastes propeller (also called negative pressure mechanism), so that making the wastes distributing into the tank evenly and higher density and till full.The collecting and transporting way of the garbage compactor truck adopts widely all over the world. The function of the entire special device adopts the truck engine as power, realizing by hydraulic mechanism manual or electronic control.The wastes van and the loader, which is also called wastes tan and sewer tank, adopting high quality carbon steel with full-sealed welding structure, with the advantages of high strength, light weight, non second pollution, etc. More information, please contact with Ms. Anita.
