CLW Brand garbage compactor trucks are also called rear loader garbage truck, wastes collecting vehicles, etc. This kind of garbage truck is a kind of special purpose vehicle, mainly used for collecting, transporting and discharging bagged wastes, barreled wastes, bulk household wastes in towns and cities, etc.The wastes is pressured and pushed into the wastes van by the truck mounted wastes propeller (also called negative pressure mechanism), so that making the wastes distributing into the tank evenly and higher density and till full.The collecting and transporting way of the garbage compactor truck adopts widely all over the world. The function of the entire special device adopts the truck engine as power, realizing by hydraulic mechanism manual or electronic control.The wastes van and the loader, which is also called wastes tan and sewer tank, adopting high quality carbon steel with full-sealed welding structure, with the advantages of high strength, light weight, non second pollution, etc. More information, please contact with Ms. Anita. The hot sale line is 0086 13329899995.
The volume of dongfeng 12cbm garbage compactor truck is 3.5cbm.And with the wastes loading capacity of about 6tons. THe wastes van of CLW Brand compacted garbage truck adopts high quality China standard light duty steel, solid arc-shape box body of strengthen beam and steel plate weled.
Operation way: PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.
If you're interested in our garbage compactor truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: 0086 13329899995.

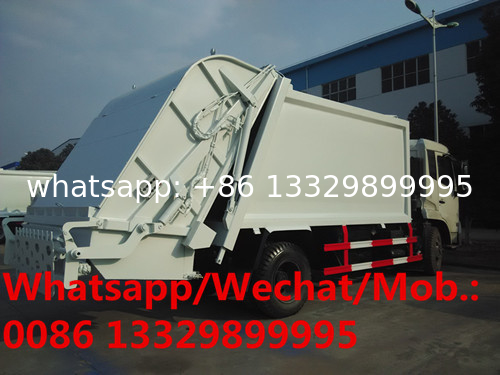

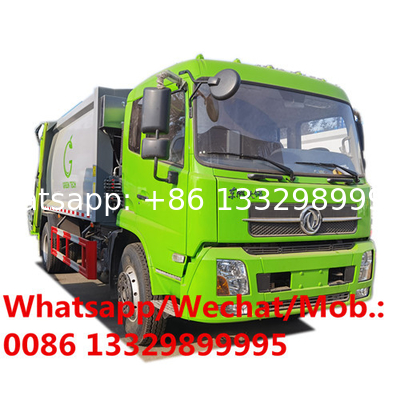

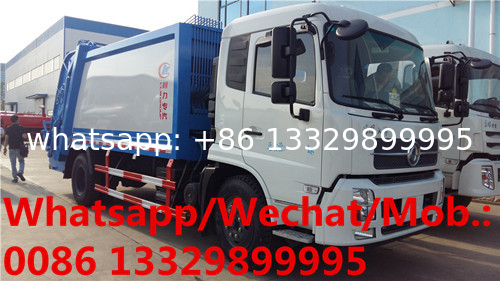

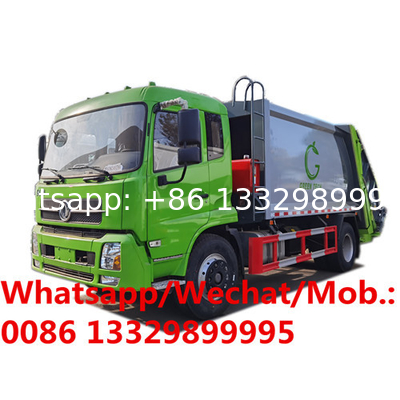

More pictures of DONGFENG 4*2 12CBM-14CBM compacted garbage truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
main technical parameters of dongfeng tianjin 4*2 LHD/RHD 12CBM garbage compactor truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
| Main specification |
| Product model and name |
Dongfeng 4x2 12cbm 14cbm Compression Garbage Truck |
| Steering type |
Right hand drive or Left hand drive |
Drive type |
4X2 |
| Gross weight(Kg) |
15800 |
Overall dimension(mm)
(for reference)
|
8600×2490×3250 |
| Axle No. |
2 |
Cab seats |
3,4 |
| Wheelbase (mm) |
4500 |
Transmission |
8 forward gears, 2 reverse gears |
| Chassis specification |
| Chassis model |
DFL1140B2 |
Manufacturer |
Dongfeng Auto Co., Ltd |
| Brand name |
Dongfeng |
Tyre No. |
6 |
| Tyre specification |
10.00-20 |
Front/Rear axle(T) |
5/10 |
| Fuel type |
Diesel |
Emission standard |
Euro 3 |
| Engine model |
Engine power(Kw) |
Horsepower(hp) |
| Cummins B190 33 (wheelbase:4500mm) |
140 |
190 |
| Body Performance |
| Body capacity(m3) |
12 |
Thickness |
Side:4mm, bottom:5mm |
| Body material |
high quality Q345 manganese steel plate |
Max pressure of hydraulic system |
18MPa |
| Body shape |
curved |
Hydraulic oil pump |
Made in China |
| Multi-way valve |
Made in China |
Compression ratio |
≥2.5 |
| Hydraulic Cylinder |
BoLi |
Filler effective volume |
≥0.8m3 |
| Control system |
Germany Siemens PLC electronic control(Imported) |
Filling cycle per time |
≤40S |
| Unloading garbage time |
≤45S |
Flip mechanism |
rear hanging bucket turning mechanism |
| Control system |
Manual + Automatic |
| Main Characteristic |
|
1.. With manual and automatic two sets of control method, the operator can control in the cabin, in the middle side or the back of the truck , very convenient and efficient.
2. With working device of emergency braking stop button.
3. Garbage body use frame design, elegant, strong structure, large effective capacity.
5. Equipped with special collection box, sewage directly into the sewage tank in the process of compression, that is effectively prevent second pollution caused by sewage leaks.
5.Through hydraulic system design, the truck achieve the function of two-way garbage compression, that is improve the compressibility ,make the compression ratio up to 1:2.5,the garbage can reach more then 600~800kg/m3 after compression.
|
