hot sale 60,000L horizontal stationary surface lpg gas storage tank, bulk surface propane gas storage tank for sale
Cheng Li produced a liquefied gas storage tanks in series, can be used to store the different nature of the liquefied petroleum gas (propane), propylene, ammonia, dimethyl , methanol, butadiene, butane, ethylene oxide,etc.in low pressure liquefied gases at room temperature; volume from 10 cubic meters --- 120 cubic optional. Besides, the lpg gas tank, Chengli Special Automobile Co., Ltd. could offer lpg gas trailer, lpg gas delivery truck, lpg gas dispenser vehicle, skid lpg gas filling plant, etc. More information, please feel free to contact with Ms. Anita Deng.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels, such as bulk lpg tank, lpg gas trailer, lpg gas truck, skid lpg gas filling plant, lpg gas bobtail vehicle, lpg gas dispensing truck, etc. And recently, our company lpg gas pressure vessesl products have passed ASME. That is to say, our lpg pressure vessels can be exported to USA, Europe, etc.
If you're interested in our lpg gas pressure vessels, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
> LPG storage tank with capacity of 5cbm up to 120cbm
>Color : as per customer request
>Dispenser:one gun or two gun dispenser available
>LPG Filling pump with motor
>LPG discharging pump with motor
>LPG hose assembly and quick connector
>Safety Valve+Liquid Level Indication + Pressure Gauge + Thermometer etc
>Other valves and necessary accessories for the operation of lpg filling station
Skype: truck0011
Whatsapp/wechat: +86 13329899995
QQ: 504873236
More pictures of hot sale 60m3 surface lpg gas storage tank as below

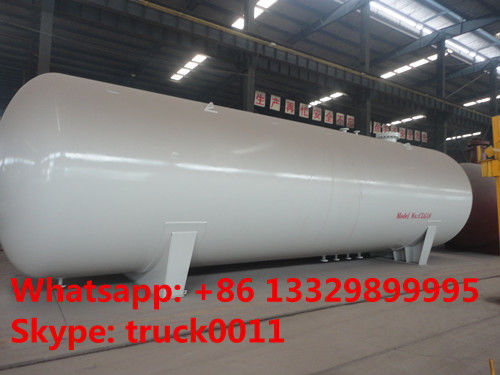

hot sale 60 cubic meters surface bulk lpg gas storage tank

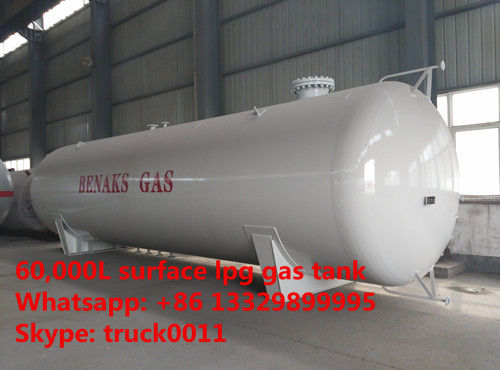

More pictures of hot sale 60,000L bulk lpg gas tank for sale
The main parameters of 60,000L lpg gas storage tank as below
| Item |
Unit |
Main parameters |
| Product name |
|
LPG gas storage tank(60000L) |
| Product model |
|
CLG2700-60 |
| Loading medium |
|
LPG gas (propane) |
| Overall dimension(L*W*H) |
mm |
10962*2728*3318 |
| Tank dimension(inner diameter*thickness*length) |
mm |
DN2700*14*10962 |
| Tank volume |
m3 |
60 |
| Tank thickness |
mm |
14 |
| End heads thickness |
mm |
16 |
| Curb mass |
kg |
12750 |
| loading capacity |
Kg |
23940 |
| Designed pressure |
Mpa |
1.77 |
| Working pressure |
Mpa |
≤1.6 |
| Working temperature |
℃ |
≤50 |
| Hydraulic test pressure |
Mpa |
2.22 |
| Air tight test pressure |
Mpa |
1.77 |
| Tank and main Material pressure components |
Q345R,16Mnlll |
| Standard |
<<GB150steel pressure vessel>>,<<Supervision Regulation on Safety Technology for Pressure Vessel>>
|
| Chosen assembly |
Safety valve, magic level gauge, pressure gauge, temperature gauge, cut-off valve, etc.
|
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. And with many years'developing, the CLW brand lpg gas pressure vessels have been exported to so many countries all over the world, such as Vietnam, Mongolia, Kazakhstan, Uzbekistan, Bangladesh, Korea, Russia, Afghan, Iraq, Angola, Algeria, Nigeria, Congo, Libya, Jordan, Ethiopia, Mozambique, Mali, Niger, Trinidad, Namibia, etc. And last year, our CLW brand lpg gas pressure vessels have passed US ASME certificate. We can design and manufacture GB standard lpg gas pressure vessels and ASME standard pressure vessels.
