2021s high quality and competitive price 4MT surface propane gas storage tank for sale, HOT SALE! 8cbm lpg gas storage tank
Chengli Special Automobile Co., Ltd. is a professional LPG tank manufacturer in China, our products fully passed ISO9001-2000 international quality system and 3Cauthentication.We can produce various kinds of LPG Trucks, LPG Semi-trailers and LPG Storage Tanks.
1. The biggest LPG truck's valid volume is 35.5cbm
2. The biggest LPG trailer's valid volume is 59.52cbm; low transport costs, more profit.
3. Our LPG storage tank is ranged from 5cbm to 200cbm, both ground and underground.
main technical parameters of CLW brand 8,000Liters surface lpg gas storage tank manufactured by Chengli Special Automobile Co.,Ltd. as below
| Item |
Unit |
Main parameters |
| Product name |
|
LPG gas storage tank(8000L) |
| Product model |
|
CLG1600-8 |
| Loading medium |
|
LPG gas (propane) |
| Overall dimension(L*W*H) |
mm |
4270*1620*2210 |
| Tank dimension(inner diameter*thickness*length) |
mm |
DN1600*10*4270 |
| Tank volume |
m3 |
8cbm |
| Tank thickness |
mm |
10 |
| End heads thickness |
mm |
10 |
| Curb mass |
kg |
2540 |
| Rated mass |
kg |
3192 |
| Designed pressure |
Mpa |
1.77 |
| Working pressure |
Mpa |
≤1.6 |
| Working temperature |
℃ |
≤50 |
| Hydraulic test pressure |
Mpa |
2.22 |
| Air tight test pressure |
Mpa |
1.77 |
| Tank and main Material pressure components |
Q345R,16Mnlll |
| Standard |
<<GB150steel pressure vessel>>,<<Supervision Regulation on Safety Technology for Pressure Vessel>>
|
| Chosen assembly |
Safety valve, magic level gauge, pressure gauge, temperature gauge, cut-off valve, etc.
|

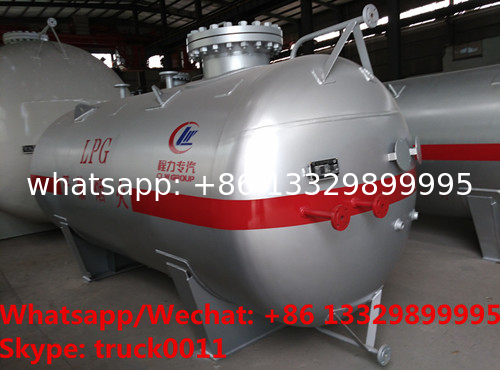

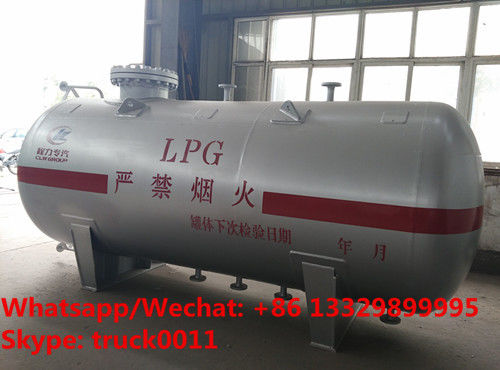

More pictures of CLW brand surface lpg gas storage tank manufactured by Chengli Special Automobile Co., Ltd. as below.
high quality and competitive price lpg gas storage tank
HOT SALE! 4MT surface lpg gas storage tank for sale
More information, please feel free to contact with Ms. Anita.
Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
QQ: 504873236
Chengli special automobile Co., Ltd is an automobile manufacturer , the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade. Besides, the company has established a good relationship with domestic and overseas customers from Africa, South America, the Middle East and South Asia, winning a universal recognition and trust from the oversea customers and contributing to China trucks’ entrance to the international market.
1.Quality control: our company truck pass ISO,CCC,BV certification.
2.Design capacity :Our factory have over 200 technicians and designers.
3. Exhibition: our factory attend Canton Fair every year.
4. Export market: Africa, Southeast Asia, Central Asia, South America , Oceania and so on.
5.Our company cooperate with famous chassis manufacturers, such as DONGFENG, FAW, SHINOTRUK, IVECO, FOTON, and etc.
