Place of Origin: | China |
Brand Name: | CLW |
Certification: | CCC, ISO 9001, ASME |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | negotiable |
Packaging Details: | in bulk package, waxed |
Delivery Time: | 40days |
Payment Terms: | T/T, L/C |
Supply Ability: | 20units/month |
Color: | Different Color Upon Request | Price: | High Quality Factory Direct Sale Price |
---|---|---|---|
Material: | High Quality Q345R Material Special For Lpg Gas Pressure Vessel | Volume: | From 5,000Liters To 120,000Liters |
ASME standard China made 5MT surface lpg gasstorage tank for sale, HOT SALE! High quality and competitive price 10,000Liters lpg gas tank
Our factory is a professional LPG tank manufacturer in China, our products fully passed ISO9001-2000 international quality system and 3C authentication. We can produce various kinds of LPG Trucks, LPG Semi-trailers and LPG Storage Tanks.
The advantage of CLW LPG storage tank:
1. Certificate: ISO9001, CCC, ASME;
2. Whole tanker body 620 ℃ heat treatment for 35-40 Minutes;
3. 100% X-ray radiographic test;
4. 2.22Mpa hydraulic test pressure;
5. Safety Control System:liquid indicator, built-in safety valve, emergency cut-off valve, ball valve and etc.
6. Customized tank capacity 5m3 to 200m3;
7. LPG tanker series ranks Top 5 in China;
8. Export covering more than 50 countries and regions
9. Factory direct supply with competitive price reliable quality and fast delivery.
More information, please feel free to contact with Ms. Anita.
Whastapp/Wechat/Mob.: +86 13329899995
Email: truck0011@163.com; clwtrucks2020@gmail.com; chenglitruckanita@hotmail.com
10CBM LPG Storage Tank 5 tons Propane Gas tanker 10000 liters pressure vessel for Nigeria
Product Name | 10cbm LPG Tanker | Filling Medium | Propane |
Certification | ASME,GB | Overall Dimension | 5260*1620*2210mm |
Tanker Volume | 10CBM | Tanker Weight | 2950kg |
Tanker Material | Q345R,Q370,ASME | Tanker Thicker | 10mm |
Design Pressure | 1.77MPa | End-Plate Shape | Round or Ellipse |
Pressure Gauge | Available | Thermometer | Available |
Safety Valve | Available | Emergency Cut-off Valve | Available |
Specification of 10CBM LPG Tank | |
Volume of Tank | 10CBM |
Filling Weight | 1995kg |
Tank Weight | 5260kg |
Thickness of Shell (mm) | 10mm |
Thickness of Endplate (mm) | 10mm |
Tank Diameter (mm) | 1600mm |
External Dimensions (mm) (length x width x height) | 5620x1620x2210mm |
Material of Tank and Main Pressure Parts | Carbon Steel Q345R |
Filling Medium | Liquefied Petroleum Gas ( Propane) |
Design Pressure | 1.77 MPa |
Corrosion Allowance | 1 mm |
Medium Density | 420~520kg/cbm |
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. |

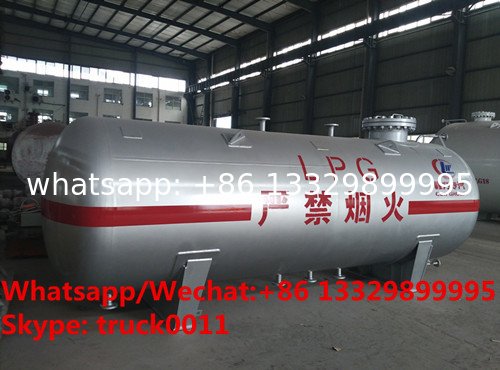

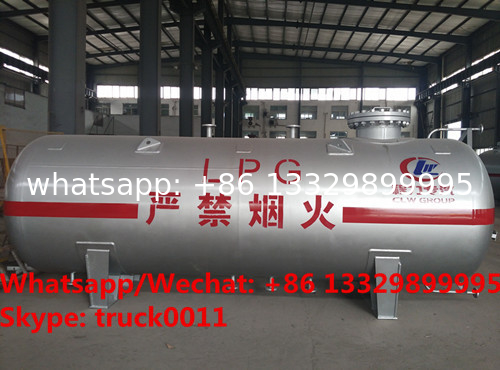

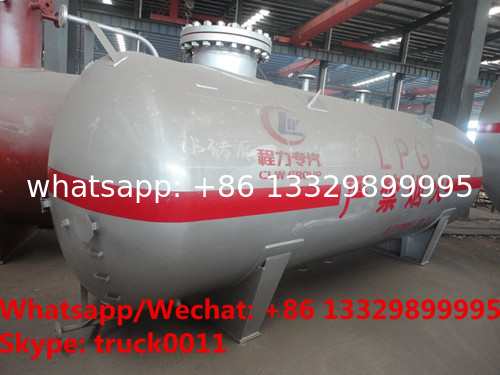

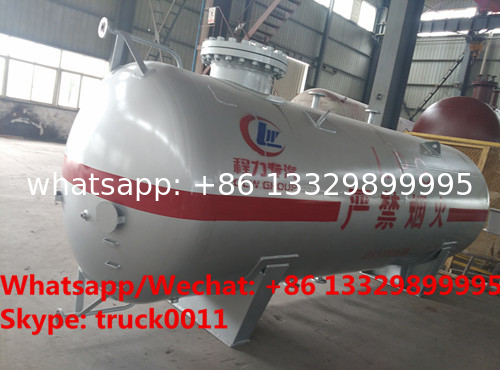

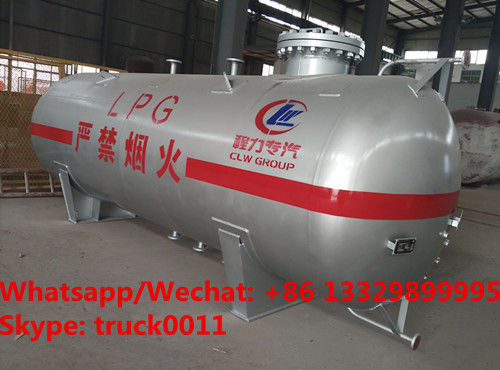

More pictures of CLW brand 10,000Liters surface propane gas storge tank manufactured by Chengli Special Automobile Co., Ltd. as below
HOT SALE!10,000Literssurface lpg gas storage tank
High quality and competitive price CLW brand 10cbm surface propane gas storage tank for sale
customized 5MT surface lpg gas tank for sale
Chengli Special Automobile Co., Ltd. is a professional LPG tank manufacturer in China, our products fully passed ISO9001-2000 international quality system and 3C authentication.
We can product 3cbm,5cbm,8cbm,10cbm,15cbm,20cbm,25cbm,32cbm,100 cbm...200cbm LPG Tanker storage,and also we have the biggest LPG trailer (59.5CBM) and LPG truck (35.5CBM) in the world:
1.Certificate: ISO9001, CCC, ASME;
2.Top quality, good price;
3.Loading volume could reach to 59.5m3. (The biggest LPG tanker semi trailer)
4.We selected International well-known brands as our spare parts supplier such as BPW, WABCO etc.
5.Safety Control System:liquid indicator, built-in safety valve, emergency cut-off valve, ball valve and etc.
6.Strict Quality Control System: We have established perfect QC system. Every single product has to approve our QC tests after production.
