Place of Origin: | China |
Brand Name: | CLW |
Certification: | ASME standard, China standard |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | 10000-15000 |
Packaging Details: | in bulk package, waxed |
Delivery Time: | 30 days |
Payment Terms: | T/T, L/C |
Supply Ability: | 50 units/month |
Color: | Different Color Upon Request | Material: | High Quality Q345R Material For Lpg Gas Pressure Vessels |
---|---|---|---|
Price: | High Quality Factory Direct Sale Price | ||
High Light: | LPG gas storage tank,bulk LPG gas tank,LPG gas tank for propane |
High quality 50M3 surface lpg gas storage tank for sale, best price 50m3 bulk cooking propane gas storage tank for sale
The LPG gas storage tanks manufactured by Chengli Special Automobile Co., Ltd. are horizontal type. 1000L liquid can take place of above 100 sets cylinders for LPG gas. And the LPG gas storage tanks can be used to storage several characters middle-low pressure common temperature LPG gas, such as liquefied petroleum gas (propane), propene, liquid ammonia, dimethyl , methyl alcohol, butadiene, isobutene, epoxyethane, aminomethane, etc.
CLW LPG gas storage tanks are widely used for small, medium and large LPG gas stations. Easy to install and small occupation area, CLW LPG gas storage tanks are the perfect ones for storage and supplying LPG gas.
CLW LPG gas storage tanks adopts the leading technical, with perfect structure, long lifetime, flexible operation and easy to maintenance.
If you're interested in our lpg gas pressure vessels, please feel free to send email to truck0011@163.com.
More information, please feel free to contact with us.
skype: truck0011
whatsapp/wechat/Mob.: +86 13329899995
QQ: 504873236
1.high quality and factory price LPG storage tank
2.past ISO&3C lpg storage tank
3.5-20m3 capacityLPG storage tank
4.Q345R tank material LPG storage tank
5. Corrosion Allowance 1.0mm LPG storage tank.
More technical parameters of hot sale lpg gas storage tank as below
Item |
Parameter |
Item |
Parameter |
|||
Tank |
Model |
CLG3200-100Liquefied Gas Storage Tank |
Liquid level meter |
Model |
UHZ-518C14 |
|
Overall dimensions |
13020×3240×3900 (mm) |
Types |
Magnetic plate over Level |
|||
Weight of tank |
22901 (kg) |
Nominal pressure |
2.5Mpa |
|||
Types of containers |
Three |
Measuring range |
50-3100mm |
|||
Design pressure |
1.77Mpa |
precision |
2.5 |
|||
Maximum working pressure |
1.61Mpa |
Safety valve |
Model |
A42F-2.5-80 |
||
Design temperature |
-19~50°C |
Types |
Built-in, full open |
|||
Loading Material |
Liquefied petrolic gas(Propane) |
Nominal pressure |
2.5 Mpa |
|||
Corrosion Allowance |
1.0mm |
Nominal diameter |
DN80 |
|||
Cubage |
100m3 |
Opening pressure |
1.68-1.76 Mpa |
|||
heat treatment |
Whole |
Setback pressure |
≥ opening pressure×0.8 |
|||
Loading coefficient |
420kg/m3 |
Loading device |
Nominal diameter |
liquid inlet |
DN50 |
|
Material of tank |
16MnR |
liquid outlet |
DN80 |
|||
Testing hydraulic pressure |
2.22 Mpa |
air intake |
DN50 |
|||
Testing pressure for gas density |
1.77 Mpa |
Blow down valves |
DN80 |
|||
Thickness of the tank design |
18.47mm |
Exhaust valves |
DN80 |
|||
Head design thickness |
18.42mm |
standard |
GB150-1998 |
|||
Life |
10Year |
Pressure Vessels Safety and Technical Supervision Regulation |
We can supply different volume lpg storage tank, 10m3,12m3,15m3,20m3,25m3,32m3,50m3,60m3, 80m3, 100m3 are all available;our factory all supply double axle and tri-axle and different capacities LPG tank semi trailer according to different demands. we use high quality Q345R material to ensure these product's stability, safety and large capacity during transportation.
More pictures of hot sale CLW brand lpg gas storage tank as below

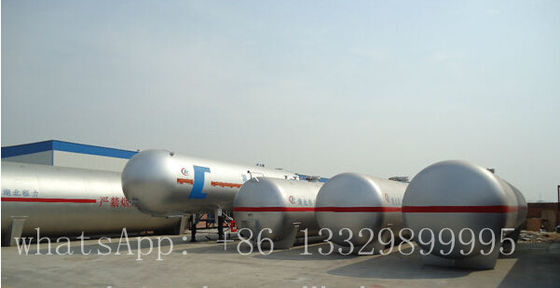

hot sale lpg gas storage tank
mini bulk surface lpg gas storage tank for sale
